ADF4212BRUZ - Analog Devices

Description: ADF4211: 550 MHz/2.0 GHz ADF4212: 1.0 GHz/2.7 GHz ADF4213: 1.0 GHz/3 GHz 2.7 V to 5.5 V Power Supply Separate Charge Pump Supply (VP) Allows Extended Tuning Voltage in 3 V Systems Programmable Dual Modulus Prescaler RF and IF: 8/9, 16/17, 32/33, 64/65 Programmable Charge Pump Currents 3-Wire Serial Interface Analog and Digital Lock Detect Fastlock Mode Power-Down Mode

Download ADF4212BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

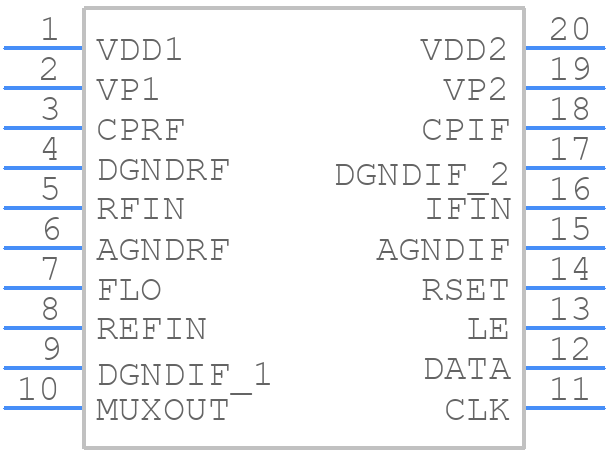

ADF4212BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4212BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Thin Shrink Small Outline Package (TSSOP) (RU-20)
click to zoom
3D Models
ADF4212BRUZ - Analog Devices - 3D model - Small Outline Packages - Thin Shrink Small Outline Package (TSSOP) (RU-20)
click to zoom

ADF4212BRUZ Details

  • Manufacturer Part Number:

    ADF4212BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADF4212BRUZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a star-grounding configuration to minimize noise.
  • Use the Analog Devices PLL Loop Filter Design Tool or a similar tool to optimize the loop filter design based on the specific application requirements. Consider factors such as phase noise, loop bandwidth, and stability.
  • The ADF4212BRUZ can operate from 65 MHz to 13.6 GHz. Configure the device using the SPI interface to select the desired frequency band and output frequency. Refer to the datasheet for specific configuration details.
  • Use a low-noise power supply with adequate decoupling capacitors (e.g., 100 nF and 10 μF) close to the device. Ensure the power supply voltage is within the recommended range (3.3 V ± 10%) and use a voltage regulator if necessary.
  • The ADF4212BRUZ has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device. Monitor the device temperature using the thermal monitoring pin (TMP) and take corrective action if overheating occurs.
