ADF4212LBCPZ-RL - Analog Devices

Description: Dual Power PLL Frequency Synthesizer

Download ADF4212LBCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

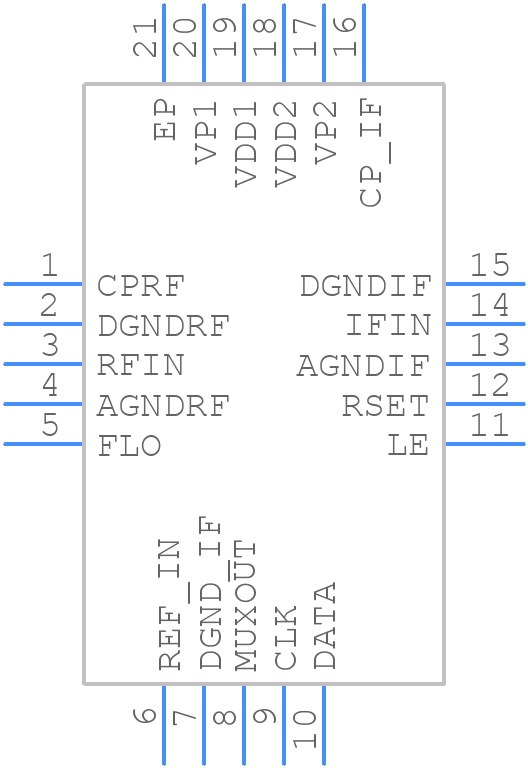

ADF4212LBCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4212LBCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-6
click to zoom
3D Models
ADF4212LBCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-6
click to zoom

ADF4212LBCPZ-RL Details

  • Manufacturer Part Number:

    ADF4212LBCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADF4212LBCPZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADF4212LBCPZ-RL can be found in the ADI's application note AN-1369, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The ADF4212LBCPZ-RL's registers can be programmed using a 3-wire serial interface (SPI) or a 2-wire serial interface (I2C). The programming sequence and register maps are provided in the datasheet, and ADI also provides a software development kit (SDK) and evaluation boards to simplify the programming process.
  • The ADF4212LBCPZ-RL is a fractional-N PLL synthesizer that can generate frequencies from 54 MHz to 13.2 GHz, making it suitable for a wide range of applications, including wireless infrastructure, satellite communications, and radar systems.
  • To ensure optimal phase noise performance with the ADF4212LBCPZ-RL, it is essential to follow proper PCB design and layout guidelines, use a high-quality voltage regulator, and optimize the loop filter design. ADI also provides application notes and simulation tools to help designers optimize phase noise performance.
  • Yes, the ADF4212LBCPZ-RL is designed to meet the requirements of high-reliability applications, including aerospace, defense, and industrial systems. It is manufactured using a high-reliability process, and ADI provides a range of screening options, including burn-in and environmental testing, to ensure the device meets the required standards.
