ADF4212LBCPZ-RL7 - Analog Devices

Description: Dual Power PLL Frequency Synthesizer

Download ADF4212LBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

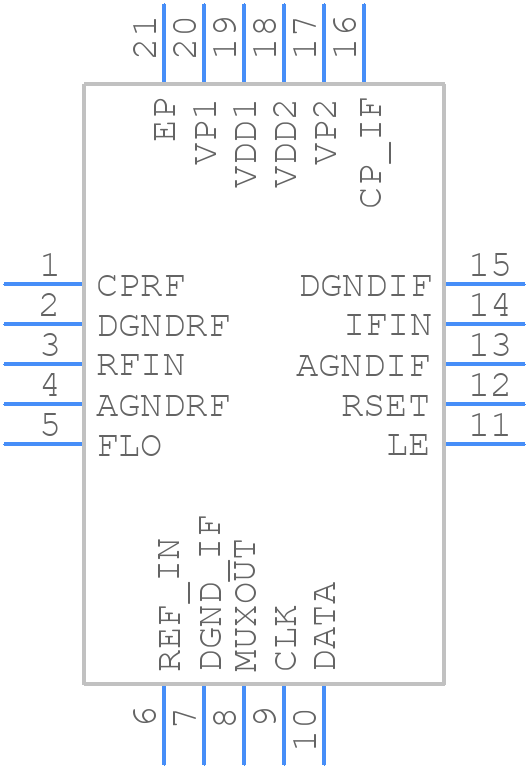

ADF4212LBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4212LBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom
3D Models
ADF4212LBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom

ADF4212LBCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF4212LBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADF4212LBCPZ-RL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADF4212 evaluation board documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The ADF4212LBCPZ-RL7's registers can be programmed using a serial interface, such as SPI or I2C, depending on the configuration. Analog Devices provides a programming guide and software tools, such as the ADI PLL Wizard, to simplify the programming process.
  • The ADF4212LBCPZ-RL7 can operate up to 4.5 GHz, but the maximum frequency range depends on the specific configuration and application. It's recommended to consult the datasheet and application notes for specific frequency range limitations.
  • The ADF4212LBCPZ-RL7 provides a lock detect output (LD) that indicates when the PLL is locked. Additionally, the device can be configured to output a lock detect signal on a dedicated pin. It's recommended to monitor the LD output and adjust the PLL settings as needed to ensure lock.
  • The power consumption of the ADF4212LBCPZ-RL7 depends on the specific configuration, frequency, and operating conditions. The datasheet provides typical power consumption values, but it's recommended to consult the device's power consumption calculator or contact Analog Devices for more accurate estimates.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4212LBCPZ-RL7 Overview

Use the download button to access the ADF4212LBCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF42, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
