A good PCB layout for the ADF4212LBRUZ-RL involves keeping the RF signal paths as short as possible, using a solid ground plane, and separating the analog and digital sections. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the analog signals, a layer for the digital signals, and a layer for the ground plane.
To configure the ADF4212LBRUZ-RL for frequency synthesis applications, you need to set the correct register values for the PLL, VCO, and output frequency dividers. You can use the ADIsimPLL tool or consult the datasheet and application notes for guidance on calculating the required register values and programming the device.
When selecting loop filter components for the ADF4212LBRUZ-RL, consider the PLL bandwidth, phase margin, and noise tolerance. Choose components that provide a flat frequency response, low noise, and high impedance. The datasheet and application notes provide guidance on calculating the required component values and selecting suitable components.
To troubleshoot common issues with the ADF4212LBRUZ-RL, start by checking the power supply, clock input, and PLL configuration. Verify that the device is properly programmed and that the loop filter components are correct. Use a spectrum analyzer to measure the output frequency and identify any spurious signals. Consult the datasheet, application notes, and Analog Devices' support resources for further guidance.
The ADF4212LBRUZ-RL has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Follow the recommended PCB layout and thermal management guidelines in the datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADF4212LBRUZ-RL Overview

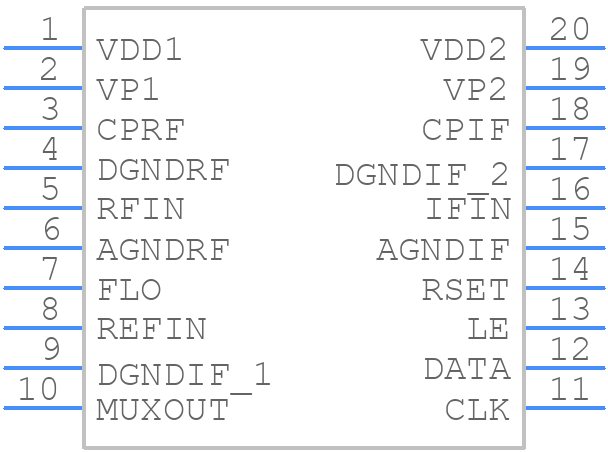

Use the download button to access the ADF4212LBRUZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF42,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
