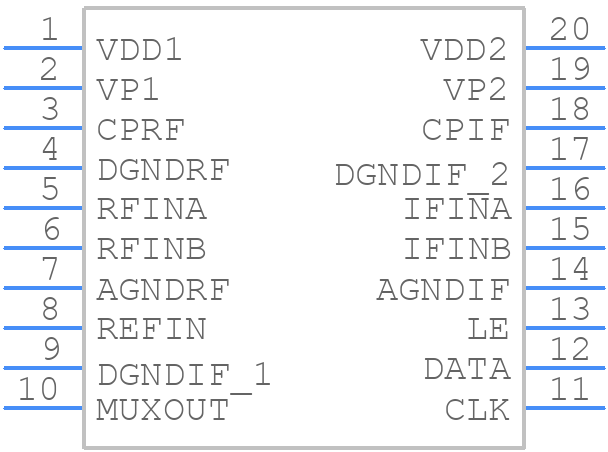

ADF4218LBRUZ-REEL - Analog Devices

ADF4218LBRUZ-REEL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ADF4218?
  A good PCB layout for the ADF4218 involves keeping the RF signal paths as short as possible, using a solid ground plane, and minimizing the use of vias. It's also recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the power supply, and two layers for the ground plane.
• How do I ensure the ADF4218 is properly biased for optimal performance?
  To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. The ADF4218 requires a single 3.3V power supply, and the voltage regulator should be able to provide a low noise and stable output. Additionally, ensure that the bias resistors and capacitors are properly selected and placed close to the device.
• What is the maximum frequency deviation that can be achieved with the ADF4218?
  The maximum frequency deviation that can be achieved with the ADF4218 depends on the specific application and the PLL loop filter design. However, according to the datasheet, the ADF4218 can achieve a frequency deviation of up to ±10MHz with a modulation frequency of up to 100kHz.
• How do I troubleshoot issues with the ADF4218's PLL lock detection?
  To troubleshoot issues with the PLL lock detection, first ensure that the PLL loop filter is properly designed and implemented. Check the voltage levels at the PLL lock detection pins (LD and LDP) to ensure they are within the recommended range. Also, verify that the PLL is properly configured and that the reference clock is stable and within the recommended frequency range.
• What is the recommended method for thermal management of the ADF4218?
  The ADF4218 is a high-power device and requires proper thermal management to ensure reliable operation. The recommended method is to use a heat sink with a thermal conductivity of at least 1°C/W, and to ensure that the heat sink is properly attached to the device using a thermal interface material. Additionally, ensure that the PCB is designed to dissipate heat efficiently.
