ADF4351BCPZ-RL7 - Analog Devices

Description: Phase Locked Loops - PLL 34-4400MHz PLL with Integrated VCO

Download ADF4351BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

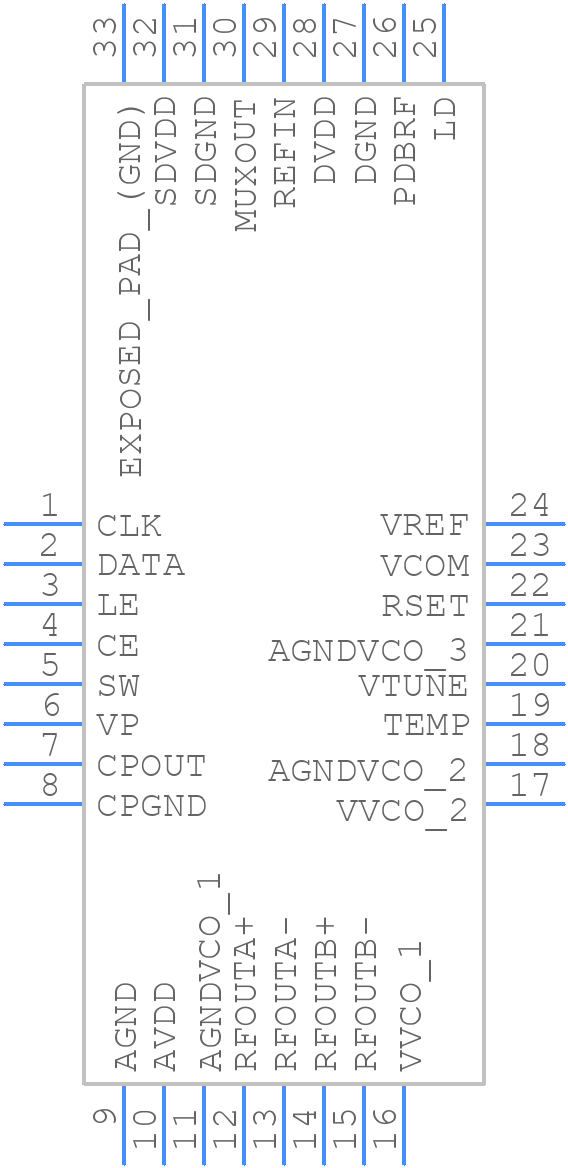

ADF4351BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4351BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-7 (LFCSP)
click to zoom
3D Models
ADF4351BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-7 (LFCSP)
click to zoom

ADF4351BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF4351BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    SELECTABLE 8/9 PRESCALER

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    27 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF4351BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from digital signals. Use a common mode filter or a pi-filter to reduce noise and EMI.
  • To optimize phase noise performance, use a high-quality crystal oscillator as the reference clock, ensure a stable power supply, and minimize the noise on the control voltage pins. Also, use the internal charge pump and set the MUXOUT pin to 'low' to reduce noise.
  • The maximum frequency deviation depends on the output frequency and the modulation mode. In general, the ADF4351BCPZ-RL7 can achieve a frequency deviation of up to ±10 MHz at an output frequency of 2.5 GHz.
  • Use the ADF4351BCPZ-RL7's built-in frequency modulation capability and program the device to switch between different frequencies using the serial interface. You can also use an external microcontroller to control the frequency hopping sequence.
  • Power up the device in the following sequence: VDD, AVDD, and then DVDD. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
