ADF4355-3BCPZ-RL7 - Analog Devices

Description: Clock Generator 10MHz to 600MHz-IN 6600MHz-OUT 32-Pin LFCSP EP T/R

Download ADF4355-3BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

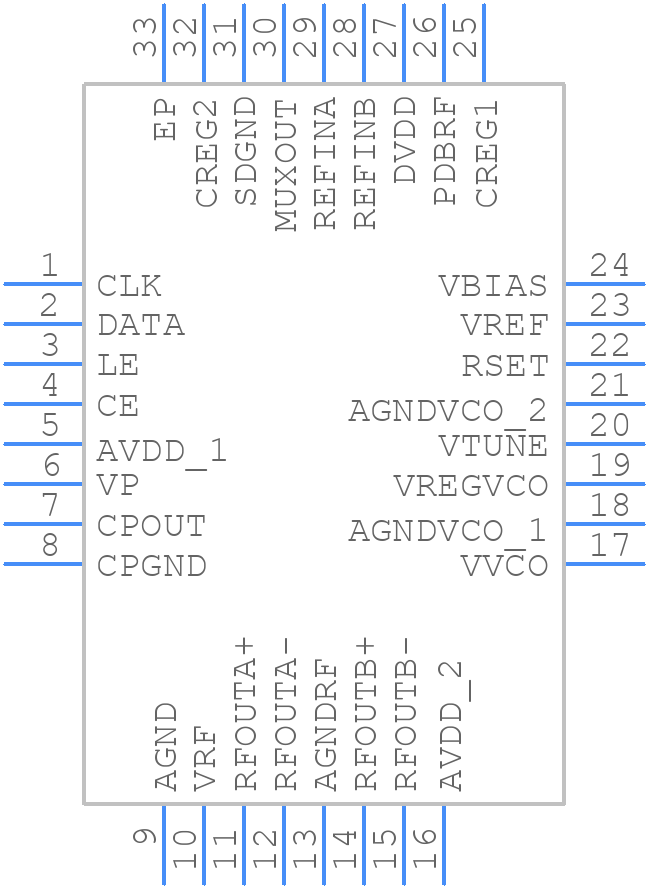

ADF4355-3BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4355-3BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-12_
click to zoom
3D Models
ADF4355-3BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-12_
click to zoom

ADF4355-3BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF4355-3BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    75 mA

  • Supply Voltage-Max (Vsup):

    3.4485 V

  • Supply Voltage-Min (Vsup):

    3.1515 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF4355-3BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4355 involves keeping the RF signal paths as short as possible, using a solid ground plane, and minimizing the number of vias. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to keep the power supply decoupling capacitors close to the device.
  • To optimize the ADF4355's phase noise performance, ensure that the device is operated within its recommended operating conditions, use a high-quality crystal oscillator, and optimize the loop filter component values. Additionally, minimize the noise on the power supply lines and use a low-noise voltage regulator.
  • The maximum frequency deviation that can be achieved with the ADF4355 depends on the specific configuration and the frequency band of operation. However, in general, the device can achieve frequency deviations of up to ±20 MHz or more, depending on the modulation mode and the frequency band.
  • To implement a mute function with the ADF4355, you can use the device's mute pin (PIN 15) to disable the RF output. When the mute pin is pulled low, the RF output is disabled, and the device enters a low-power state.
  • The recommended power-up sequence for the ADF4355 involves applying the power supply voltage (VCC) first, followed by the voltage regulator output (VREGOUT), and finally the digital power supply voltage (DVCC). This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-up issues.
