ADF4356BCPZ - Analog Devices

Description: PLL Freq. Synthesizer 6.8GHz LFCSP-32

Download ADF4356BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

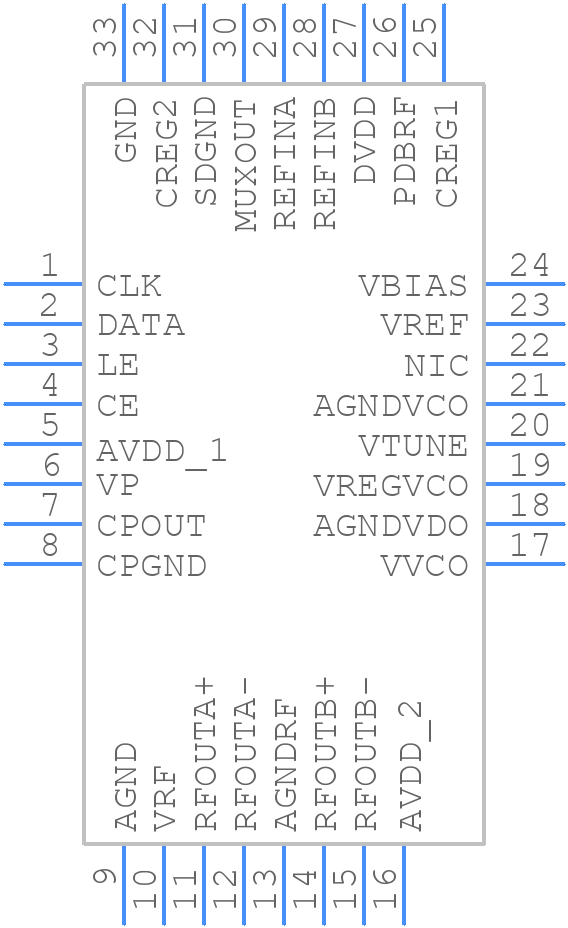

ADF4356BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4356BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12_2
click to zoom
3D Models
ADF4356BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12_2
click to zoom

ADF4356BCPZ Details

  • Manufacturer Part Number:

    ADF4356BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-10-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ADD COUNT R-1 TO 1023 AND N COUNTER FOR PRESCALER 4/5-23 TO 32767

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF4356BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4356BCPZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the clock signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a solid ground plane.
  • To optimize the ADF4356BCPZ for low phase noise performance, use a high-quality crystal oscillator, ensure a stable power supply, and minimize the noise on the control voltage lines. Additionally, use a low-noise voltage regulator and decouple the power supply lines with capacitors.
  • The maximum frequency deviation that can be achieved with the ADF4356BCPZ depends on the frequency band and the modulation mode. In general, the ADF4356BCPZ can achieve frequency deviations of up to ±10 MHz in the integer-N mode and up to ±20 MHz in the fractional-N mode.
  • To program the ADF4356BCPZ to generate a specific frequency, use the following steps: 1) Calculate the required R-counter value using the formula R = (desired frequency / (PFD frequency x N)) - 1. 2) Calculate the required N-counter value using the formula N = (desired frequency / PFD frequency) - R. 3) Program the R-counter and N-counter values into the ADF4356BCPZ using the serial interface.
  • The maximum power consumption of the ADF4356BCPZ is typically around 360 mW when operating at a supply voltage of 3.3 V and a frequency of 4 GHz. However, the actual power consumption may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4356BCPZ Overview

Use the download button to access the ADF4356BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF43, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
