ADF4360-0BCPZ - Analog Devices

Description: ADF4360-0BCPZ, PLL Frequency Synthesizer, 2400 → 2725 MHz, 24-Pin VQLFCSP

Download ADF4360-0BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

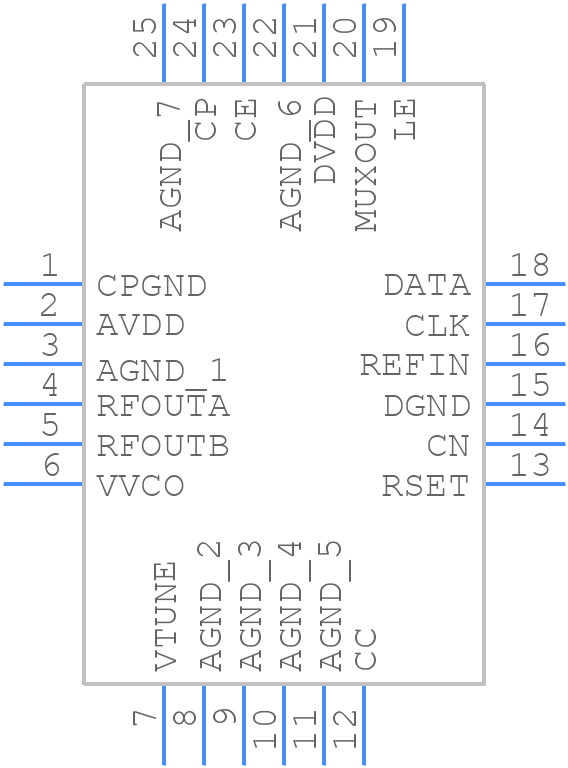

ADF4360-0BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4360-0BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-14 (LFCSP)
click to zoom
3D Models
ADF4360-0BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-14 (LFCSP)
click to zoom

ADF4360-0BCPZ Details

  • Manufacturer Part Number:

    ADF4360-0BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4360-0BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4360-0BCPZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the clock input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the phase noise performance of the ADF4360-0BCPZ, ensure that the device is operated within its recommended operating conditions, use a high-quality crystal oscillator, and minimize the noise on the power supply lines. Additionally, optimizing the loop filter component values and using a low-noise voltage regulator can also help to improve phase noise performance.
  • The maximum frequency deviation that can be achieved with the ADF4360-0BCPZ depends on the specific application and the frequency range of operation. However, in general, the device can achieve frequency deviations of up to ±10 MHz or more, depending on the modulation frequency and the loop bandwidth.
  • To implement a mute function with the ADF4360-0BCPZ, you can use the device's power-down mode (PD pin) to disable the output stage when not in use. Additionally, you can also use an external switch or a digital control signal to disable the output stage.
  • The recommended power-up sequence for the ADF4360-0BCPZ involves powering up the device in the following order: VCC, AVCC, and then DVCC. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-up related issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4360-0BCPZ Overview

Use the download button to access the ADF4360-0BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF43, or try a keyword search, such as PLL or Frequency Synthesis Circuits
