ADF4360-1BCPZRL7 - Analog Devices

Description: Phase Locked Loops - PLL Int. Synthesizer & VCO - 2000 - 2550 MHz

Download ADF4360-1BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

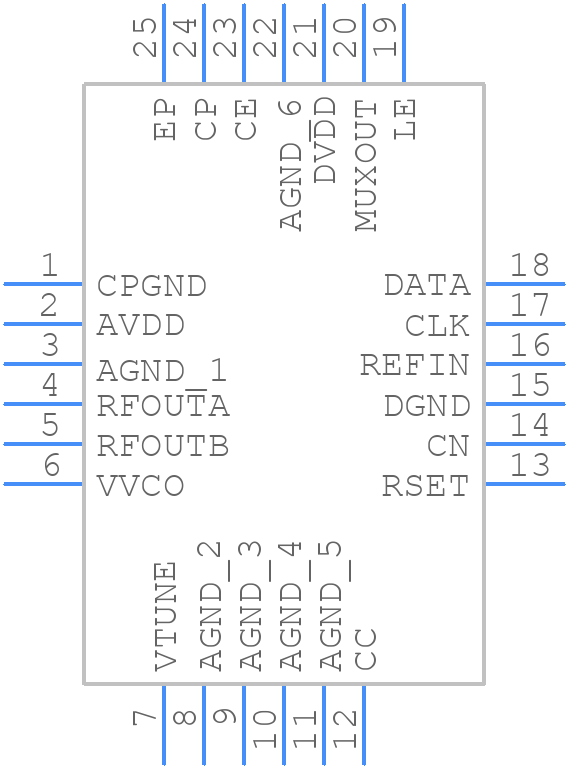

ADF4360-1BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4360-1BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-14)
click to zoom
3D Models
ADF4360-1BCPZRL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-14)
click to zoom

ADF4360-1BCPZRL7 Details

  • Manufacturer Part Number:

    ADF4360-1BCPZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4360-1BCPZRL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a star-configuration for the power supply connections.
  • The charge pump current can be optimized by adjusting the RSET resistor value. A smaller RSET value increases the charge pump current, while a larger value decreases it. The optimal value depends on the specific application and PLL loop bandwidth requirements.
  • The maximum frequency deviation is dependent on the PLL loop bandwidth and the charge pump current. With a high charge pump current and a narrow PLL loop bandwidth, frequency deviations up to ±20% of the center frequency can be achieved.
  • Ensure that the device is powered from a low-noise, well-regulated power supply. The recommended power supply voltage is 3.3V, and the device should be biased with a stable voltage reference. Decouple the power supply lines with 10uF and 100nF capacitors.
  • The ADF4360-1BCPZRL7 can be programmed using a 3-wire serial interface. Use a microcontroller or a dedicated programming device to send the programming data to the device. Ensure that the programming voltage is within the recommended range of 1.62V to 3.6V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4360-1BCPZRL7 Overview

Use the download button to access the ADF4360-1BCPZRL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF43, or try a keyword search, such as PLL or Frequency Synthesis Circuits
