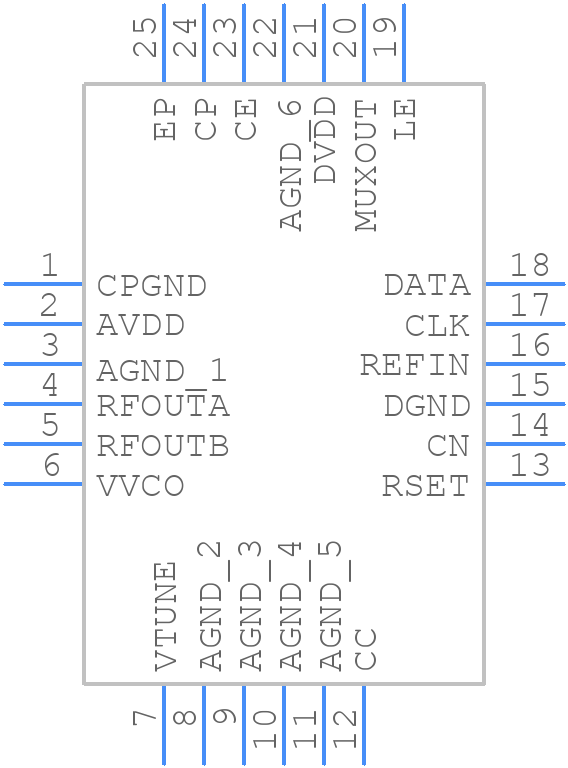

ADF4360-2BCPZ - Analog Devices

ADF4360-2BCPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADF4360-2BCPZ to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a star-configuration for the power supply connections.
• How do I optimize the charge pump current for my specific application?
  The charge pump current can be optimized by adjusting the RSET resistor value. A smaller RSET value increases the charge pump current, while a larger value decreases it. The optimal value depends on the specific application and the required phase noise performance.
• What is the recommended power-up sequence for the ADF4360-2BCPZ?
  The recommended power-up sequence is to first apply the analog power supply (VCC), followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
• How do I troubleshoot phase noise issues with the ADF4360-2BCPZ?
  To troubleshoot phase noise issues, check the PCB layout for noise coupling, ensure proper power supply decoupling, and verify that the charge pump current is set correctly. Also, check the loop filter component values and the reference clock frequency.
• Can I use the ADF4360-2BCPZ with a different reference clock frequency than the recommended 10 MHz?
  Yes, the ADF4360-2BCPZ can be used with a different reference clock frequency, but the PLL loop filter component values may need to be adjusted accordingly. Consult the datasheet and application notes for guidance on calculating the optimal loop filter component values.
