ADF4360-3BCPZRL - Analog Devices

Description: Clock Generator 10MHz to 250MHz-IN 1950MHz-OUT 24-Pin LFCSP EP T/R

Download ADF4360-3BCPZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

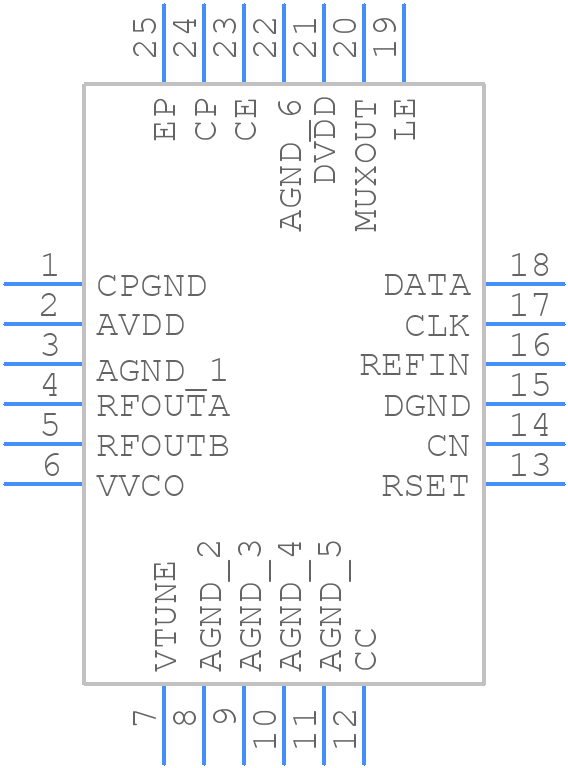

ADF4360-3BCPZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4360-3BCPZRL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADF4360-3BCPZRL
click to zoom
3D Models
ADF4360-3BCPZRL - Analog Devices - 3D model - Quad Flat No-Lead - ADF4360-3BCPZRL
click to zoom

ADF4360-3BCPZRL Details

  • Manufacturer Part Number:

    ADF4360-3BCPZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4360-3BCPZRL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADF4360-3BCPZRL can be found in the device's evaluation board documentation, which provides a reference design for optimal performance. Additionally, Analog Devices provides a PCB layout guide that outlines best practices for designing a PCB for the ADF4360-3BCPZRL.
  • To optimize the ADF4360-3BCPZRL's phase noise performance, ensure that the device is operated within its recommended operating conditions, including voltage, temperature, and power supply noise. Additionally, use a high-quality voltage regulator, decouple the power supply lines, and minimize the distance between the device and the voltage regulator. It's also important to optimize the PCB layout to minimize noise coupling and radiation.
  • The ADF4360-3BCPZRL has a maximum frequency range of 65 MHz to 4000 MHz, but this range can be extended to 6000 MHz with the use of an external doubler or multiplier. However, it's essential to consult the device's datasheet and application notes to ensure that the desired frequency range is within the device's specifications and to understand any potential limitations or trade-offs.
  • The ADF4360-3BCPZRL's registers can be programmed using a 3-wire serial interface. The device's datasheet provides a detailed description of the register map, and Analog Devices provides a programming guide that outlines the steps for programming the device. Additionally, evaluation software is available that allows users to program the device and evaluate its performance.
  • The ADF4360-3BCPZRL's typical current consumption is 55 mA at 3.3 V, but this can vary depending on the device's operating conditions, including frequency, output power, and voltage. It's essential to consult the device's datasheet to understand the typical and maximum current consumption to ensure that the power supply can provide the required current.
