ADF4360-7BCPZ - Analog Devices

Description: ADF4360-7BCPZ, PLL Frequency Synthesizer, 350 to 1800MHz, 24-Pin CP 24

Download ADF4360-7BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

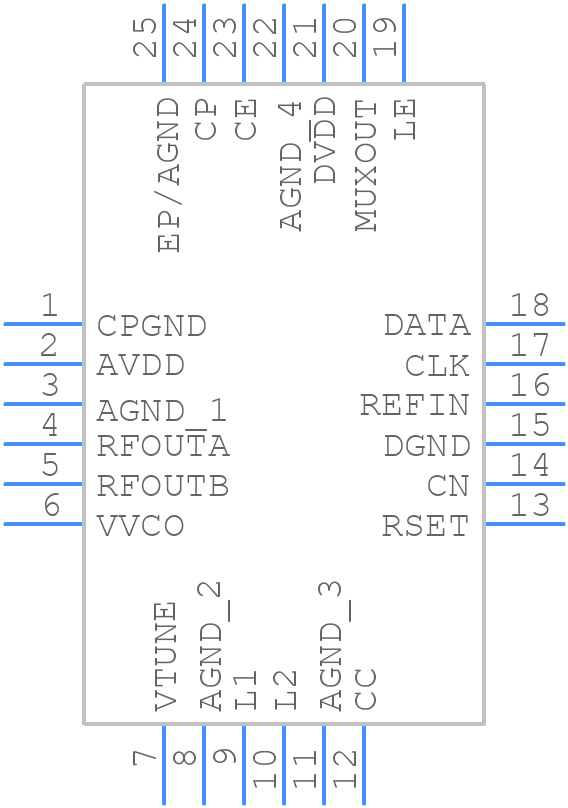

Symbol
ADF4360-7BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4360-7BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm and 0.75 mm Package Height (CP-24-14)
click to zoom
3D Models
ADF4360-7BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm and 0.75 mm Package Height (CP-24-14)
click to zoom

ADF4360-7BCPZ Details

  • Manufacturer Part Number:

    ADF4360-7BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4360-7BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a star-configuration for the power supply lines to minimize noise.
  • The charge pump current can be optimized by adjusting the RSET resistor value. A smaller RSET value increases the charge pump current, while a larger value decreases it. The optimal value depends on the specific application and the required phase noise performance.
  • The recommended power-up sequence is to first apply the analog power supply (VCC), followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To troubleshoot phase noise issues, check the PCB layout for noise coupling, ensure that the power supply is clean and well-regulated, and verify that the loop filter components are correctly selected and implemented. Also, check the device's operating frequency and ensure that it is within the recommended range.
  • While the ADF4360-7BCPZ is specified for a 3.3V supply, it can operate with a supply voltage between 2.7V and 3.6V. However, the device's performance may vary, and the phase noise and spurious performance may degrade at lower supply voltages.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4360-7BCPZ Overview

Use the download button to access the ADF4360-7BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF43, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
