ADF4360-7BCPZRL7 - Analog Devices

Description: Clock Generator 10MHz to 250MHz-IN 1800MHz-OUT 24-Pin LFCSP EP T/R

Download ADF4360-7BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

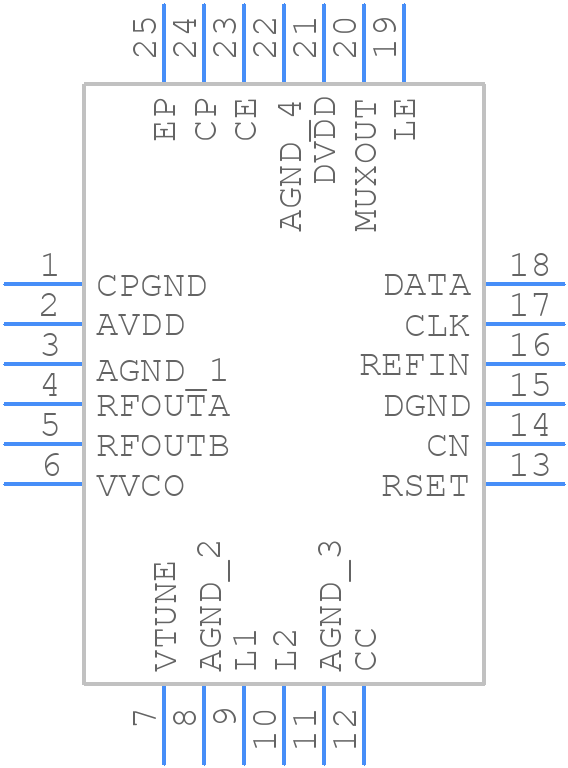

ADF4360-7BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4360-7BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-14)-2
click to zoom
3D Models
ADF4360-7BCPZRL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-14)-2
click to zoom

ADF4360-7BCPZRL7 Details

  • Manufacturer Part Number:

    ADF4360-7BCPZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4360-7BCPZRL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a star-grounding configuration to minimize noise.
  • The charge pump current can be optimized by adjusting the RSET resistor value. A smaller RSET value increases the charge pump current, while a larger value decreases it. The optimal value depends on the specific application and PLL loop bandwidth requirements.
  • The maximum frequency deviation depends on the PLL loop bandwidth and the modulation frequency. Typically, a frequency deviation of up to ±10 MHz can be achieved with a PLL loop bandwidth of 100 kHz to 1 MHz.
  • Ensure that the device is powered from a low-noise, well-regulated power supply. The recommended power supply voltage is 3.3 V, and the device should be biased with a stable voltage reference. Decouple the power supply lines with 10 μF and 100 nF capacitors.
  • The ADF4360-7BCPZRL7 can be programmed using a 3-wire serial interface. Use a microcontroller or a dedicated programming device to send the required programming data to the device. Ensure that the programming voltage is within the recommended range of 1.62 V to 3.6 V.
