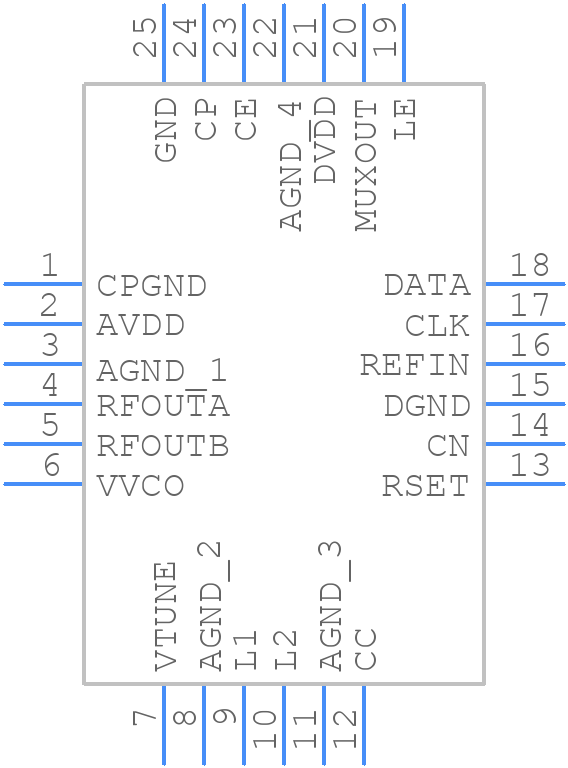

ADF4360-8BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4360-8BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADF4360-8BCPZ
click to zoom
3D Models
ADF4360-8BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - ADF4360-8BCPZ
click to zoom

ADF4360-8BCPZ Details

  • Manufacturer Part Number:

    ADF4360-8BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4360-8BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a star-configuration for the power supply lines to minimize noise.
  • The charge pump current (I_CP) should be set based on the desired phase noise performance and the loop bandwidth. A higher I_CP reduces phase noise but increases current consumption. Start with the recommended value and adjust based on your application's requirements.
  • The maximum frequency deviation is dependent on the reference frequency and the modulus value. The maximum deviation is typically limited to ±50% of the reference frequency. Consult the datasheet and application notes for specific calculations.
  • Use a combination of ceramic and electrolytic capacitors to bypass the power supply lines. Place a 10uF ceramic capacitor and a 10uF electrolytic capacitor in parallel as close to the device as possible. Add additional decoupling capacitors as needed based on the specific application.
  • Use a 3-wire serial interface (SPI) to program the device. Ensure that the serial clock frequency is within the recommended range (10 kHz to 1 MHz) and that the interface is properly terminated to prevent signal reflections.
