ADF4360-9BCPZRL7 footprint, schematic symbol and 3D model by Analog Devices

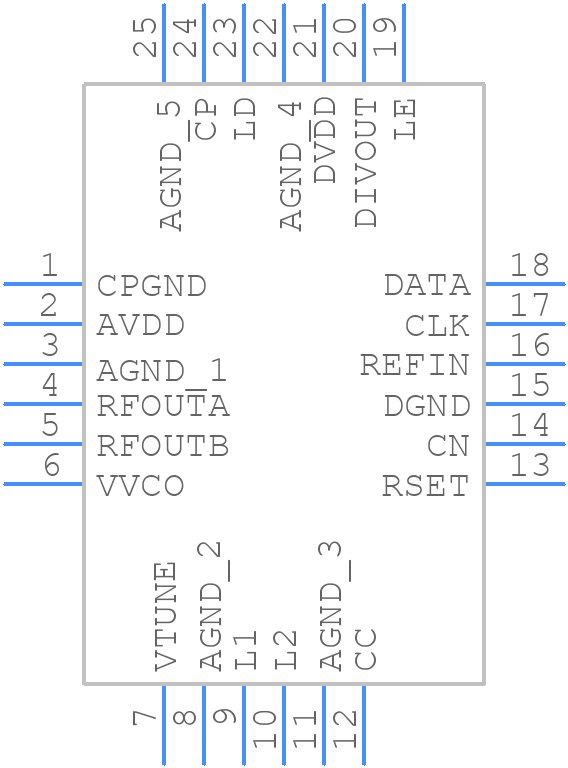

Symbol

click to zoom

PCB Footprints

ADF4360-9BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-14_2024

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADF4360-9BCPZRL7
Part Number ADF4360-9BCPZRL7
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - CP-24-14_2024
Released Date Oct 7, 2024
Last Modified Date Oct 7, 2024 6:38 AM UTC
Pinout / Pin List Click Here (Member Only)

ADF4360-9BCPZRL7 Details

Manufacturer Part Number:
ADF4360-9BCPZRL7
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
QFN
Package Description:
LFCSP-24
Pin Count:
24
Manufacturer Package Code:
CP-24-14
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
PLL FREQUENCY SYNTHESIZER
JESD-30 Code:
S-XQCC-N24
JESD-609 Code:
e3
Length:
4 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC24,.16SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
BICMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm

ADF4360-9BCPZRL7 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a low-ESR capacitor for the charge pump capacitor. Refer to the ADI application note AN-873 for more details.
To optimize phase noise performance, use a high-quality crystal oscillator as the reference clock, ensure a low-jitter clock signal, and optimize the PLL loop filter components. Additionally, use a low-noise power supply and minimize the distance between the device and the loop filter components.
The maximum frequency deviation that can be achieved with the ADF4360-9BCPZRL7 is ±20 MHz, which is limited by the charge pump current and the loop filter components.
The ADF4360-9BCPZRL7 is specified to operate from -40°C to +85°C. Ensure that the device is properly heatsinked and that the PCB is designed to dissipate heat efficiently. Monitor the device temperature using the internal temperature sensor or an external temperature sensor.
The ADF4360-9BCPZRL7 can be programmed using a 3-wire serial interface. Use a microcontroller or a dedicated programming device to send the programming data to the device. Refer to the ADI application note AN-873 for more details on programming the device.

Trust Checks

Community Provided

System Verified

Community Approved

ADF4360-9BCPZRL7 Overview

Use the download button to access the ADF4360-9BCPZRL7 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADF43, or try a keyword search, such as PLL or Frequency Synthesis Circuits
