- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADF4602BCPZ-RL
- Part Number ADF4602BCPZ-RL
- Manufacturer Analog Devices
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P600X600X100-41N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADF4602BCPZ-RL Details
-
Manufacturer Part Number:
ADF4602BCPZ-RL
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Pin Count:
40
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
-
JESD-30 Code:
S-XQCC-N40
-
JESD-609 Code:
e3
-
Length:
6 mm
ADF4602BCPZ-RL Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADF4602BCPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, a dedicated layer for the digital signals, and two layers for the power and ground planes.
-
To ensure proper biasing, make sure to follow the recommended voltage supply and biasing circuitry as shown in the datasheet. The device requires a single 3.3V or 5V power supply, and the bias voltage (VBIAS) should be set to 1.2V to 1.5V. Additionally, ensure that the input signals are properly terminated and that the device is operated within its recommended operating conditions.
-
The ADF4602BCPZ-RL is capable of operating up to 4GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 2.5GHz for optimal performance and to minimize the effects of parasitic capacitance and inductance.
-
To troubleshoot common issues with the ADF4602BCPZ-RL, start by checking the power supply and biasing circuitry to ensure they are within the recommended specifications. Next, verify that the input signals are properly terminated and that the device is operated within its recommended operating conditions. If the issue persists, try to isolate the problem by disconnecting the input signals and checking the device's output for oscillations or instability. Finally, consult the datasheet and application notes for guidance on troubleshooting and optimizing the device's performance.
-
The ADF4602BCPZ-RL has a maximum junction temperature of 150°C, and it's essential to ensure proper heat dissipation to prevent overheating. To do this, use a heat sink or a thermal pad on the device, and ensure good airflow around the device. Additionally, follow the recommended PCB layout guidelines to minimize thermal resistance and ensure that the device is operated within its recommended operating conditions.
Trust Checks
System Verified
ADF4602BCPZ-RL Overview

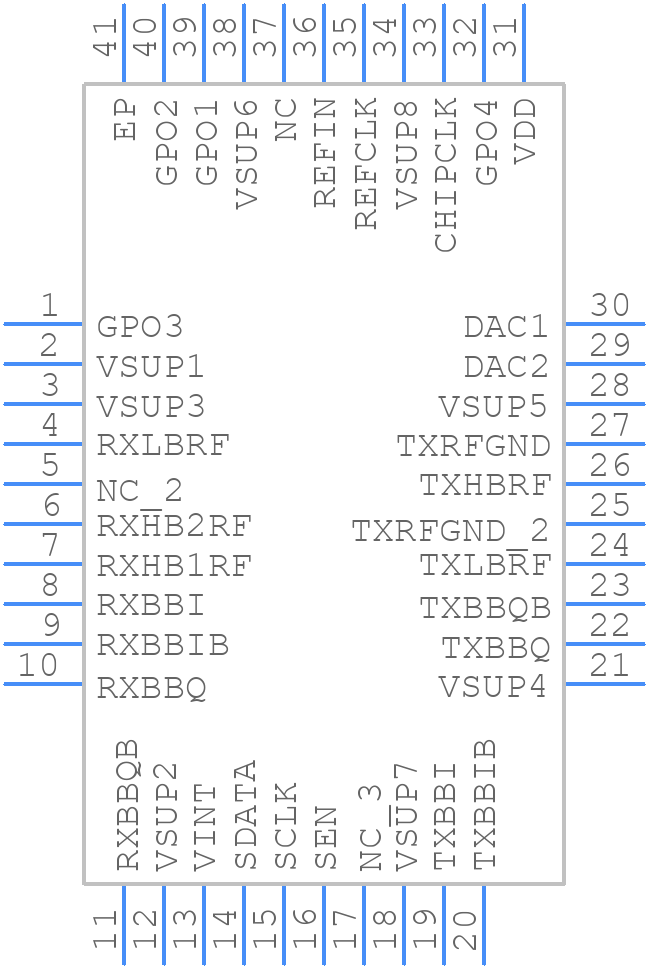

Use the download button to access the ADF4602BCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF46,
or try a keyword search, such as Cellular Telephone Circuits
