ADF4602BCPZ - Analog Devices

Description: 3G Femtocell Transceiver

Download ADF4602BCPZ Model

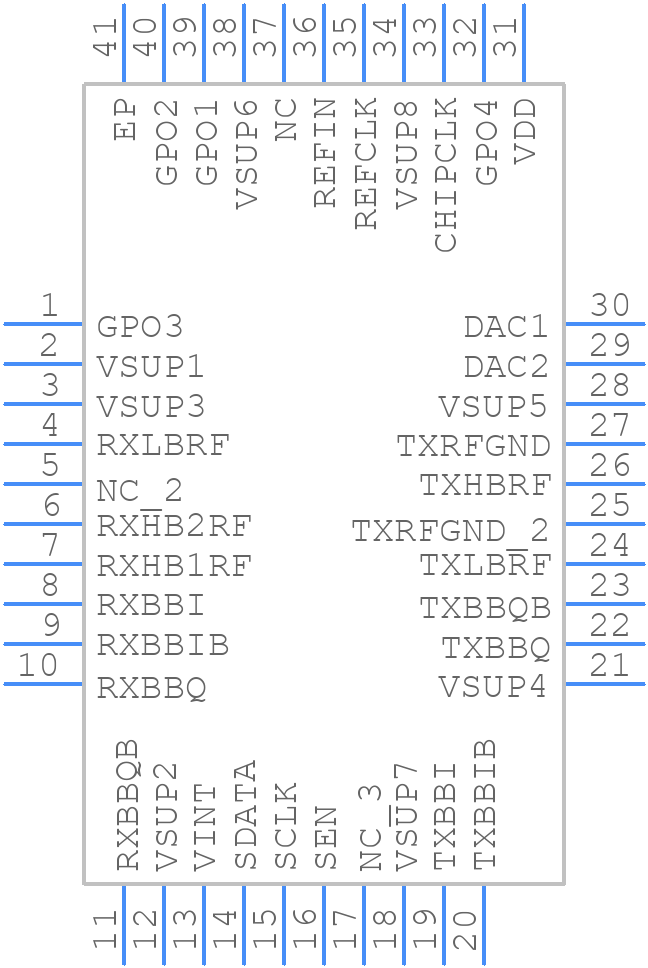

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADF4602BCPZ - Analog Devices PCB footprint - Other - Other - QFN50P600X600X100-41N
click to zoom
3D Models
ADF4602BCPZ - Analog Devices  - 3D model - Other - QFN50P600X600X100-41N
click to zoom

ADF4602BCPZ Details

  • Manufacturer Part Number:

    ADF4602BCPZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ADF4602BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds. Use short, direct traces for the input and output signals, and avoid crossing signal lines.
  • Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Also, follow the recommended thermal design guidelines in the datasheet to minimize thermal resistance.
  • Power up the device in the following sequence: VDD, AVDD, and then DVDD. Ensure that the power supplies are stable and within the recommended voltage ranges before applying the input signals.
  • Use a shielded enclosure, and ensure that the PCB is properly grounded. Keep the analog and digital sections separate, and use EMI filters or common-mode chokes on the input and output signals. Follow good PCB design practices, such as using a solid ground plane and minimizing signal loop areas.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltages and ensure they are within the recommended ranges. Verify that the device is properly configured and that the input signals are within the specified ranges. Consult the datasheet and application notes for troubleshooting guidelines.
