ADF5000BCPZ - Analog Devices

Description: ANALOG DEVICES - ADF5000BCPZ - PLL Frequency Synthesis, 18 GHz, 3 V to 3.6 V supply, LFCSP-16

Download ADF5000BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

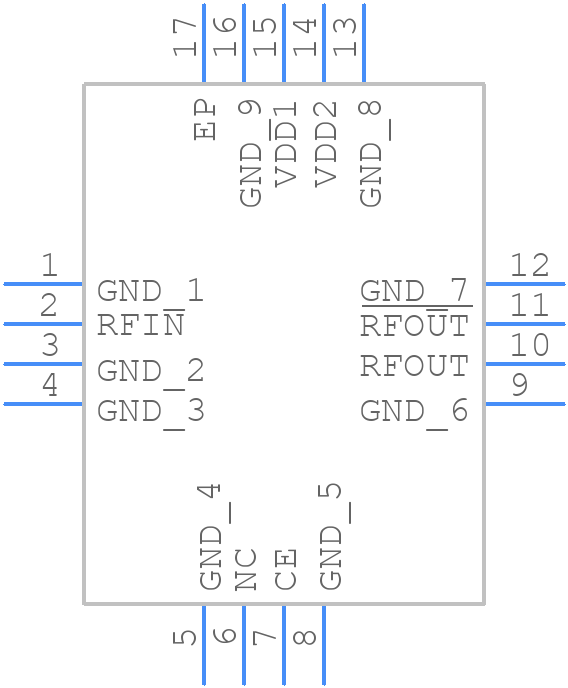

ADF5000BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF5000BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-18
click to zoom
3D Models
ADF5000BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-18
click to zoom

ADF5000BCPZ Details

  • Manufacturer Part Number:

    ADF5000BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-18

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Family:

    5000

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    PRESCALER

  • Max Frequency@Nom-Sup:

    18000000000 Hz

  • Moisture Sensitivity Level:

    3

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    60 mA

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADF5000BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-grounding scheme to minimize noise.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling. Place a 10uF ceramic capacitor close to the device, and a 10uF electrolytic capacitor further away. Ensure the capacitors are connected to a solid ground plane.
  • Use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. Ensure the clock signal is properly terminated and routed to minimize reflections and noise.
  • Use a synchronous interface with a clock signal, and ensure the data and clock signals are properly terminated and routed. Use a data transmission protocol with error detection and correction, such as SPI or I2C.
  • Use a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good airflow around the device. Keep the device away from other heat sources, and use thermal interface material to improve heat transfer.
