- Part Number ADF5002BCPZ-RL7
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P300X300X80-17N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADF5002BCPZ-RL7 Details
-
Manufacturer Part Number:
ADF5002BCPZ-RL7
-
Source Url Status Check Date:
2013-05-01 14:56:36.029
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
LFCSP-16
-
Pin Count:
16
-
Manufacturer Package Code:
CP-16-18
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
ADF5002BCPZ-RL7 Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADF5002 involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the antenna. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
-
To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. The ADF5002 requires a single 3.3V power supply, and the VCC pin should be decoupled with a 10nF capacitor. Additionally, the EN pin should be tied to VCC or a digital signal to enable the device.
-
The ADF5002 is designed to handle a maximum input power of +20dBm. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the recommended range to maintain the device's reliability and performance.
-
To troubleshoot issues with the ADF5002, start by verifying the PCB layout and ensuring that the device is properly biased. Check the input and output tracks for any signs of damage or corrosion. Use a spectrum analyzer to measure the input signal and verify that it's within the recommended frequency range. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
-
The ADF5002 is rated for operation up to 85°C. However, it's essential to follow the recommended operating conditions and derate the device's performance accordingly. Exceeding the maximum operating temperature can affect the device's reliability and performance. Consult the datasheet and application notes for guidance on operating the device in high-temperature environments.
Trust Checks
System Verified
ADF5002BCPZ-RL7 Overview

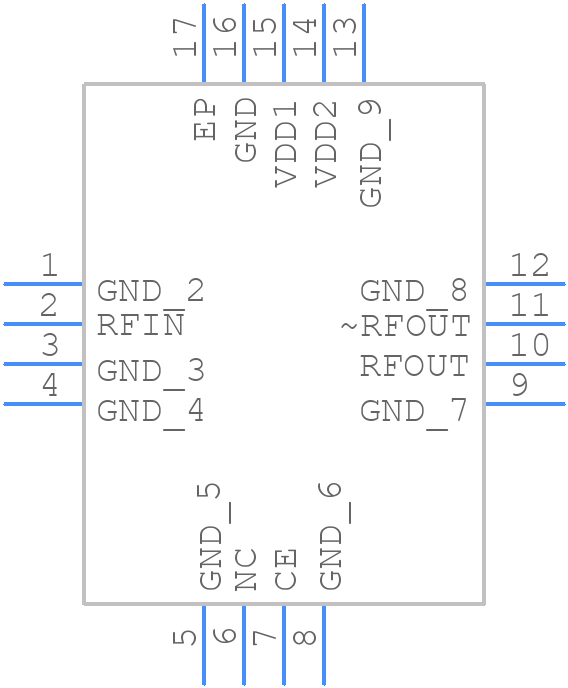

Use the download button to access the ADF5002BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
