ADF7021-NBCPZ-RL7 - Analog Devices

Description: ANALOG DEVICES - ADF7021-NBCPZ-RL7 - RF Transceiver, 842MHz to 916MHz, 2- 3- 4FSK, 24Kbps, 13dBm Out/-130dBm In, 2.3V to 3.6V, LFCSP-48

Download ADF7021-NBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

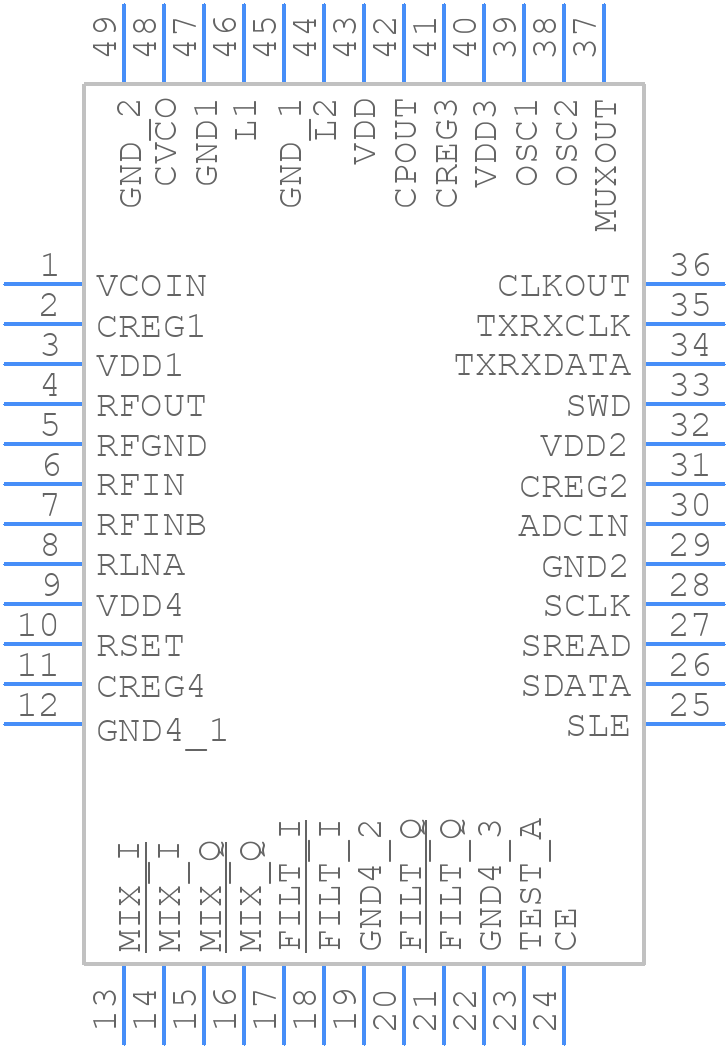

ADF7021-NBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7021-NBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Lead Lead Frame Chip Scale Package [LFCSP]..
click to zoom
3D Models
ADF7021-NBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - 48-Lead Lead Frame Chip Scale Package [LFCSP]..
click to zoom

ADF7021-NBCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF7021-NBCPZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:36.101

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADF7021-NBCPZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a robust modulation scheme like GFSK or MSK, and implement error correction mechanisms like CRC and FEC. Also, consider using a shielded enclosure and a low-pass filter to reduce electromagnetic interference.
  • The maximum transmission distance depends on the frequency band, transmission power, and antenna gain. In ideal conditions, the ADF7021 can achieve a range of up to 10 km at 868 MHz and 20 km at 433 MHz, but this can vary greatly depending on the specific application and environment.
  • Use the device's low-power modes, such as the sleep mode, and optimize the transmission duty cycle. Also, consider using a low-power microcontroller and optimizing the system's overall power budget.
  • Choose an antenna with a suitable impedance and radiation pattern for the desired frequency band. Consider using a quarter-wave monopole or a dipole antenna, and ensure the antenna is properly matched to the ADF7021's output impedance.
