ADF7021-VBCPZ-RL - Analog Devices

Description: Narrow-Band Transceiver IC

Download ADF7021-VBCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

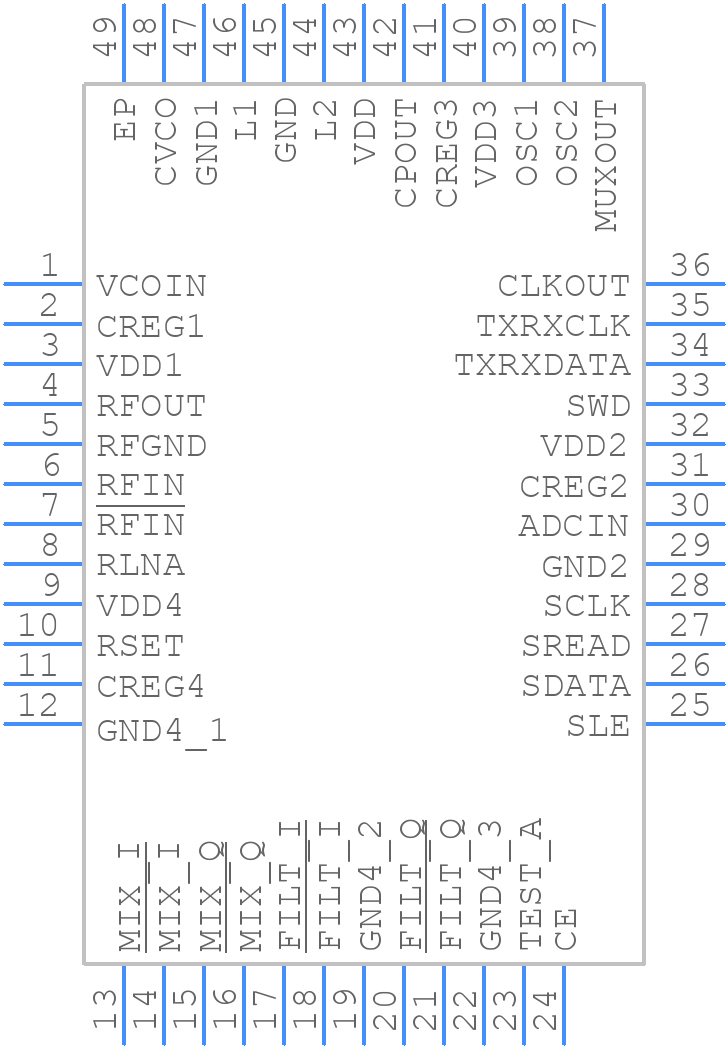

ADF7021-VBCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7021-VBCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADF7021
click to zoom
3D Models
ADF7021-VBCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - ADF7021
click to zoom

ADF7021-VBCPZ-RL Details

  • Manufacturer Part Number:

    ADF7021-VBCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    7 X 7 MM, ROHS COMPLAINT, MO-220VKKD-2, LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADF7021-VBCPZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADF7021-VBCPZ-RL can be found in the ADI's application note AN-1369, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
  • The ADF7021-VBCPZ-RL can be configured for different frequency bands by programming the device's registers using the SPI interface. The specific register settings and values can be found in the device's datasheet and programming guide.
  • The maximum data rate that can be achieved with the ADF7021-VBCPZ-RL is up to 300 kbps, depending on the modulation scheme and frequency band used.
  • Frequency hopping can be implemented with the ADF7021-VBCPZ-RL by using the device's built-in frequency synthesizer and programming the device to switch between different frequency channels using the SPI interface.
  • The power consumption of the ADF7021-VBCPZ-RL varies depending on the operating mode. In transmit mode, the typical current consumption is around 35 mA, while in receive mode it is around 20 mA. In sleep mode, the current consumption is typically less than 1 μA.
