ADF7021BCPZ-RL7 - Analog Devices

Description: RF Transceiver Narrow Band Transceiver 433/868/900 MHz

Download ADF7021BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

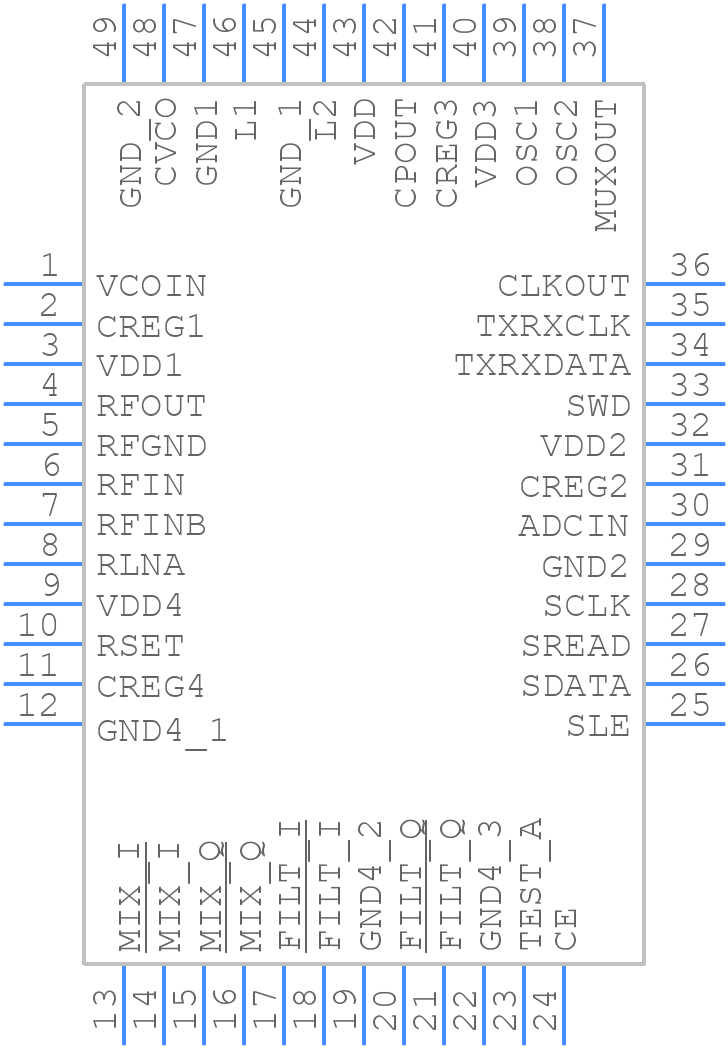

ADF7021BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7021BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-5 (LFCSP)
click to zoom
3D Models
ADF7021BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-5 (LFCSP)
click to zoom

ADF7021BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF7021BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ADF7021BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF) for power supply decoupling, and place it as close to the device as possible. Ensure the power supply voltage is within the recommended range (2.7V to 3.6V).
  • A high-quality, low-jitter clock source (e.g., a crystal oscillator or a high-stability clock generator) is recommended. The clock frequency should be within the recommended range (10MHz to 40MHz).
  • Consult the device's datasheet and application notes for guidance on optimizing performance for your specific application. Consider factors such as signal bandwidth, noise floor, and power consumption.
  • The device has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using a heat sink or thermal pad if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF7021BCPZ-RL7 Overview

Use the download button to access the ADF7021BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF70, or try a keyword search, such as Cellular Telephone Circuits
