ADF7021BCPZ - Analog Devices

Description: ADF7021BCPZ, RF Transceiver 80 to 950MHz, FSK, MSK, 2.3 to 3.6V 48-Pin LFCSP EP

Download ADF7021BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

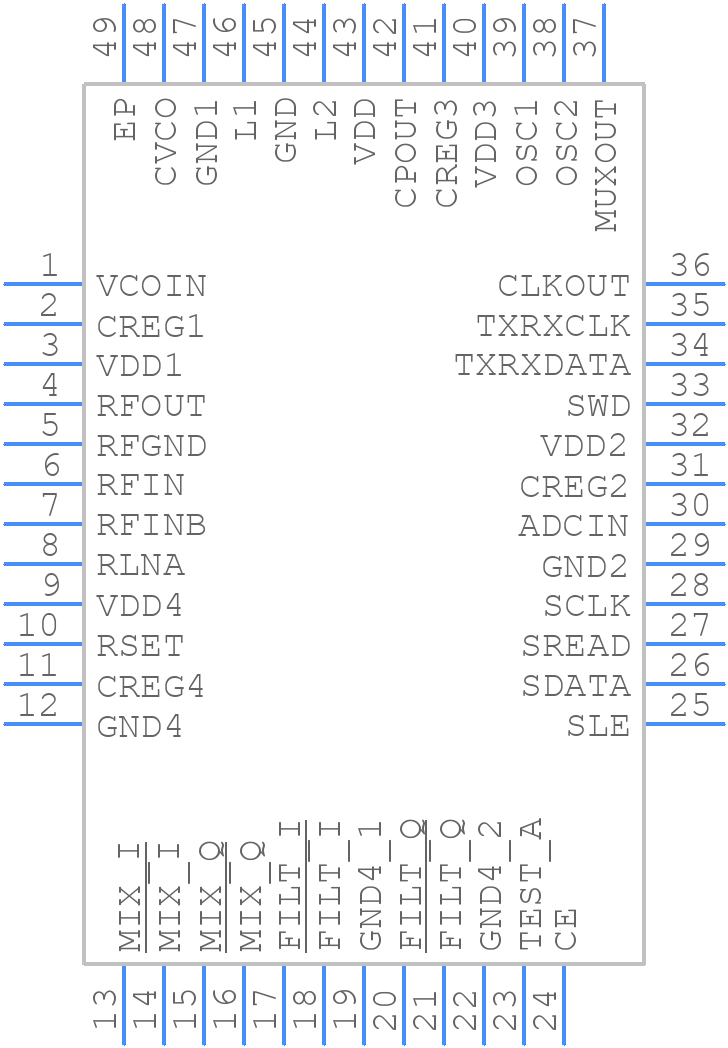

ADF7021BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7021BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-5 (LFCSP)
click to zoom
3D Models
ADF7021BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-5 (LFCSP)
click to zoom

ADF7021BCPZ Details

  • Manufacturer Part Number:

    ADF7021BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

ADF7021BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star topology for the power supply connections. Also, ensure that the RF traces are short and shielded.
  • The transmitter output power can be optimized by adjusting the PA_VCC voltage, the TX_GAIN register, and the TX_ATTEN register. Additionally, the output power can be optimized by using an external power amplifier or a directional coupler.
  • A parallel-resonant crystal oscillator circuit is recommended, with a 10-20 pF load capacitance and a 1-2 kΩ series resistor. Ensure the crystal oscillator circuit is placed close to the ADF7021BCPZ, and use a low-ESR capacitor to minimize noise and ensure stability.
  • A POR circuit can be implemented using a voltage supervisor IC, such as the ADM691, which can detect the power supply voltage and generate a reset signal. Alternatively, a simple RC circuit can be used, but this may not be as reliable.
  • Key considerations for EMC include using a shielded enclosure, minimizing loop areas, using a common-mode choke, and ensuring that the PCB layout is optimized for EMC. Additionally, ensure that the ADF7021BCPZ is properly decoupled and that the power supply is filtered.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF7021BCPZ Overview

Use the download button to access the ADF7021BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF70, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
