ADF7025BCPZ - Analog Devices

Description: Analog Devices ADF7025BCPZ, RF Transceiver 431MHz to 464MHz Triple Band 48-Pin LFCSP

Download ADF7025BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

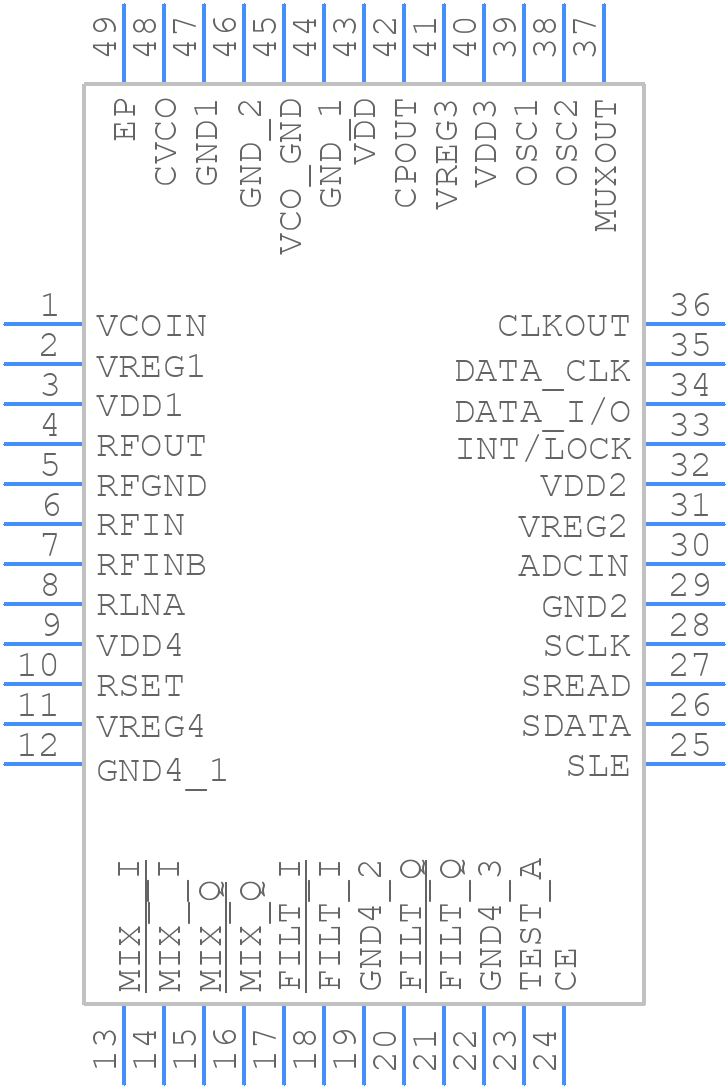

ADF7025BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7025BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-5 (LFCSP)
click to zoom
3D Models
ADF7025BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-5 (LFCSP)
click to zoom

ADF7025BCPZ Details

  • Manufacturer Part Number:

    ADF7025BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ADF7025BCPZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADF7025BCPZ can be found in the ADI's application note AN-1369, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
  • The ADF7025BCPZ can be configured for different frequency bands by programming the frequency synthesizer registers through the SPI interface. The specific register settings and values can be found in the device's programming guide and application notes.
  • The maximum data rate that can be achieved with the ADF7025BCPZ depends on the modulation scheme and frequency band used. According to the datasheet, the device supports data rates up to 300 kbps in FSK mode and up to 100 kbps in ASK mode.
  • Antenna diversity can be implemented with the ADF7025BCPZ by using an external antenna switch or a dual-antenna configuration. The device provides a dedicated antenna diversity pin that can be used to switch between two antennas or to select the best antenna based on signal quality.
  • The power consumption of the ADF7025BCPZ varies depending on the operating mode. According to the datasheet, the device consumes around 13 mA in transmit mode, 10 mA in receive mode, and 1.5 mA in standby mode. The exact power consumption can be calculated using the device's power consumption calculator tool.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF7025BCPZ Overview

Use the download button to access the ADF7025BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF70, or try a keyword search, such as Cellular Telephone Circuits
