ADFS5758BCPZ-RL7 - Analog Devices

Description: 16 Bit Digital to Analog Converter 1 32-LFCSP (5x5)

Download ADFS5758BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

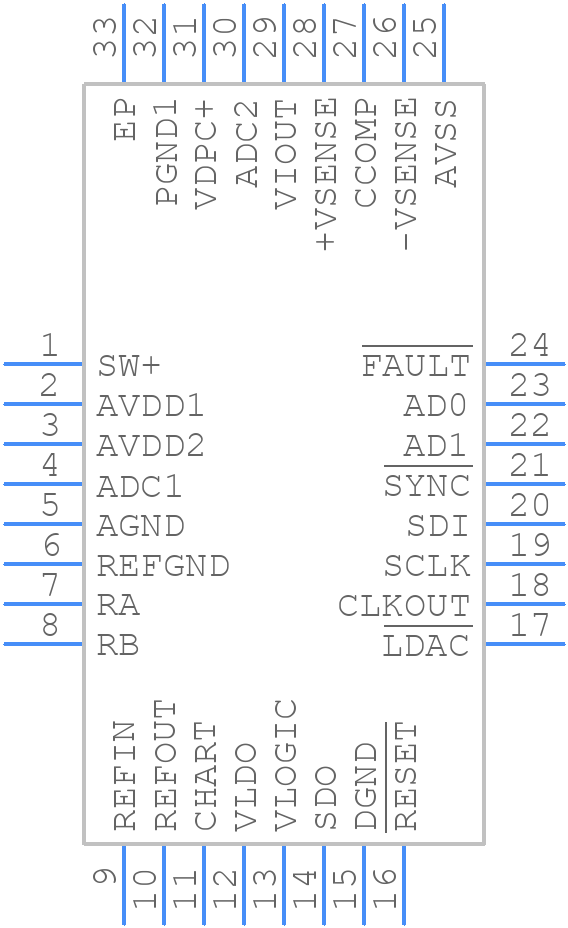

Symbol
ADFS5758BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADFS5758BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-30_2023
click to zoom
3D Models
ADFS5758BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-30_2023
click to zoom

ADFS5758BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADFS5758BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-30

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.01%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    200 µs

  • Supply Current-Max:

    3.6 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADFS5758BCPZ-RL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in their application note AN-1329, which should be followed to ensure optimal performance and thermal dissipation.
  • The optimal configuration for dynamic range and sensitivity depends on the specific application and signal characteristics. Analog Devices provides a design guide and simulation tools to help optimize the device configuration for specific use cases.
  • The recommended power-up and power-down sequence is to power up the analog supply (VCC) before the digital supply (VDD), and to power down the digital supply before the analog supply. This ensures proper device operation and prevents latch-up.
  • Analog Devices provides a troubleshooting guide in their application note AN-1329, which covers common issues and their solutions. Additionally, the device's evaluation board and simulation tools can be used to debug and optimize the design.
  • The ADFS5758BCPZ-RL7 is a commercial-grade device and is not specifically designed for radiation-tolerant or high-reliability applications. However, Analog Devices provides radiation-tolerant and high-reliability versions of the device for specific applications. Consult with Analog Devices for more information.
