ADG1408YCPZ-REEL7 - Analog Devices

Description: 4.7 Ω maximum on resistance at 25°C 0.5 Ω on-resistance flatness Up to 190 mA continuous current Fully specified at ±15 V/+12 V/±5 V 3 V logic-compatible inputs Rail-to-rail operation Break-before-make switching action 16-lead TSSOP and 4 mm × 4 mm LFCSP

Download ADG1408YCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

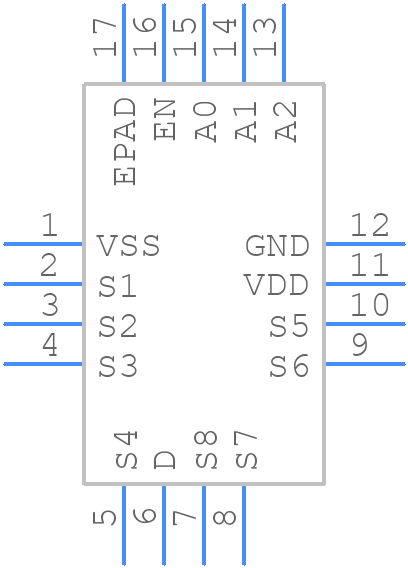

ADG1408YCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1408YCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-26)LFCSP
click to zoom
3D Models
ADG1408YCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-26)LFCSP
click to zoom

ADG1408YCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1408YCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, LEAD FREE, MO-220VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-26

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.78 Ω

  • On-state Resistance-Max (Ron):

    9 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    285 ns

  • Switch-on Time-Max:

    330 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADG1408YCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1408YCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADG1408YCPZ-REEL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the devices by the body rather than the pins. Additionally, it's a good idea to use ESD-protected workstations and to ground all equipment and tools.
  • To troubleshoot issues with the ADG1408YCPZ-REEL7, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, verify that the device is properly configured and that the input signals are within the specified range. Use an oscilloscope to check the output signals and look for any signs of distortion or noise. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Analog Devices' technical support if necessary.
  • The ADG1408YCPZ-REEL7 is a commercial-grade device and is not specifically designed for radiation-hardened applications. However, it's built with a latch-up free design and has been tested for radiation tolerance. For applications requiring radiation hardness, it's recommended to consult with Analog Devices' technical support and to consider using radiation-hardened devices.
