ADG1519BCPZ-RL7 - Analog Devices

Description: 1 3.8Ω 2:1 LFCSP-8(2x3) Analog Switches, Multiplexers, Demultiplexers RoHS , -4.5V ~ -8.8V , -40°C ~ 125°C

Download ADG1519BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

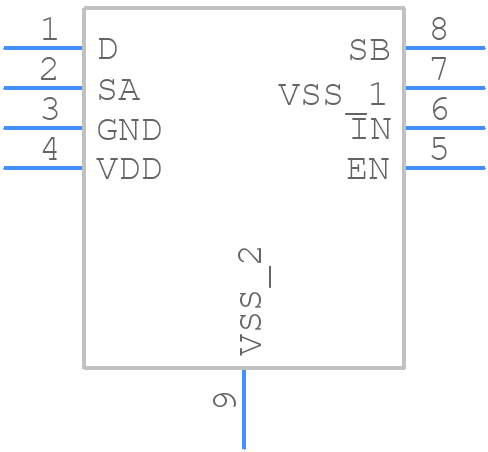

ADG1519BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1519BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-31_2025
click to zoom
3D Models
ADG1519BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-31_2025
click to zoom

ADG1519BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADG1519BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-31

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8.8 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -7.2 V

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    7 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    415 ns

  • Switch-on Time-Max:

    360 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

ADG1519BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1519BCPZ-RL7 involves placing the device close to the signal sources, using short and wide traces, and avoiding vias and right-angle bends. Additionally, a solid ground plane and a low-impedance power supply are recommended to reduce parasitic inductance and capacitance.
  • To ensure the reliability of the ADG1519BCPZ-RL7 in high-temperature applications, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range and derated accordingly.
  • The recommended power-up sequence for the ADG1519BCPZ-RL7 is to apply the power supply voltage (VDD) before applying the input signals. This ensures that the internal circuitry is properly biased and configured before the input signals are applied, preventing latch-up or damage.
  • To troubleshoot issues with the ADG1519BCPZ-RL7, it is recommended to follow a systematic approach, starting with a review of the device's datasheet and application notes. Next, verify the PCB layout and assembly, and check for any signs of physical damage or contamination. Use oscilloscopes and other diagnostic tools to measure the device's input and output signals, and compare them to the expected behavior. Finally, consult with Analog Devices' technical support team or a qualified engineer for further assistance.
  • Yes, the ADG1519BCPZ-RL7 can be used in applications with high-frequency signals, but its performance may be limited by its bandwidth and settling time. The device's bandwidth is typically limited to a few hundred kHz, and its settling time can be several microseconds. Therefore, it is recommended to carefully evaluate the device's performance in high-frequency applications and consider alternative solutions if necessary.
