ADG1604BRUZ-REEL - Analog Devices

Description: 1 Ω Typical On Resistance, ±5 V,+12 V, +5 V, and +3.3 V, 4:1 Multiplexer

Download ADG1604BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

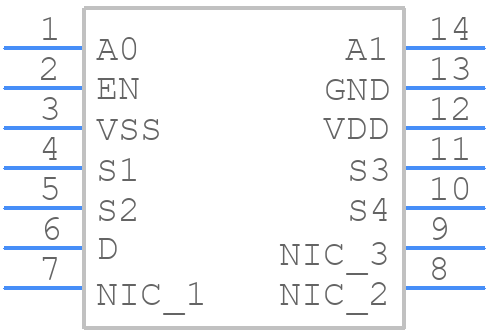

ADG1604BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1604BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
ADG1604BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

ADG1604BRUZ-REEL Details

  • Manufacturer Part Number:

    ADG1604BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    1.2 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.378 A

  • Supply Current-Max (Isup):

    0.36 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    310 ns

  • Switch-on Time-Max:

    177 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG1604BRUZ-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and land pattern in the ADG1604 datasheet, which can be found in the 'Layout' section. Additionally, the company offers a PCB layout tool, ADI's PCB Layout Tool, to help designers create an optimal layout for their specific application.
  • To ensure reliability and quality, follow proper handling and storage procedures for the device, as outlined in the datasheet. Additionally, Analog Devices recommends following a controlled manufacturing process, including moisture sensitivity level (MSL) ratings, and using a qualified manufacturer to assemble the device into the final product.
  • The ADG1604BRUZ-REEL has a maximum junction temperature (TJ) of 125°C. To ensure proper thermal management, designers should consider the device's power dissipation, thermal resistance, and ambient temperature. A thermal analysis, such as a thermal simulation or thermal modeling, can help identify potential thermal issues and guide design decisions.
  • The ADG1604BRUZ-REEL is a commercial-grade device, but Analog Devices offers various reliability and quality options, such as automotive-grade (AEC-Q100) or industrial-grade (IEC 60747-5-5) devices, which may be suitable for high-reliability or safety-critical applications. Designers should consult with Analog Devices' sales team or application engineers to determine the best option for their specific application.
  • Analog Devices provides a range of resources to help troubleshoot issues, including application notes, FAQs, and design tools. Designers can also consult with Analog Devices' application engineers or technical support team for assistance. A systematic approach to troubleshooting, including isolating the issue, consulting the datasheet, and using debugging tools, can help identify and resolve problems efficiently.
