A good PCB layout for the ADG1606 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
The recommended power-up sequence for the ADG1606 is to power up the VDD supply first, followed by the VSS supply. This ensures that the internal circuitry is properly biased and minimizes the risk of latch-up or damage to the device.
To troubleshoot issues with the ADG1606, start by verifying the power supply voltages and ensuring that they are within the recommended operating range. Check the input signals and ensure they are within the specified logic levels. Use an oscilloscope to monitor the output signals and verify that they are switching correctly. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
Yes, the ADG1606 is suitable for use in high-reliability or safety-critical applications, such as in the aerospace, automotive, or medical industries. However, it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADG1606BCPZ-REEL7 Overview

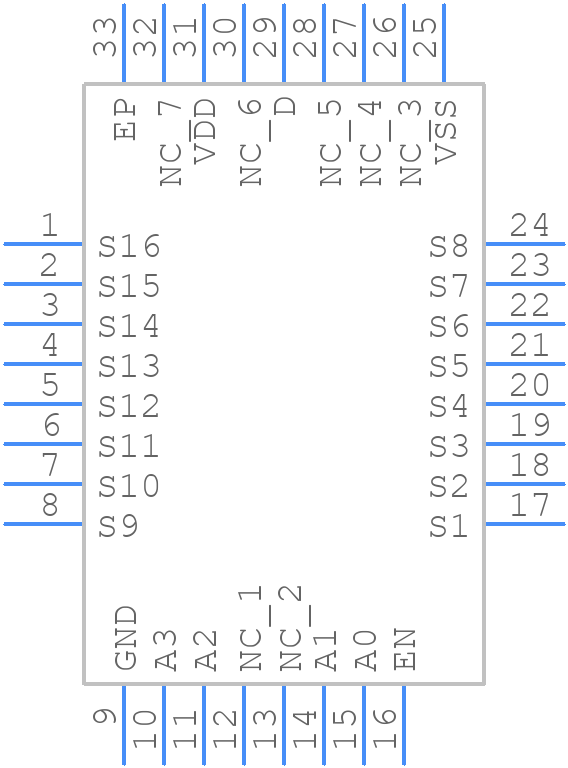

Use the download button to access the ADG1606BCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
