ADG1608BCPZ-REEL7 - Analog Devices

Description: Multiplexer

Download ADG1608BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

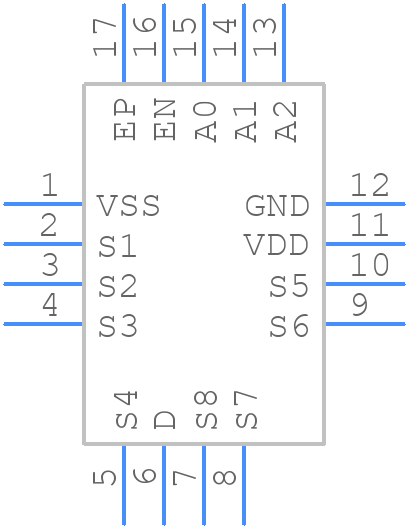

ADG1608BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1608BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - [LFCSP_WQ]
click to zoom
3D Models
ADG1608BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - [LFCSP_WQ]
click to zoom

ADG1608BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1608BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220WEED, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    0.12 Ω

  • On-state Resistance-Max (Ron):

    5 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.47 A

  • Supply Current-Max (Isup):

    0.48 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    202 ns

  • Switch-on Time-Max:

    160 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADG1608BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1608 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
  • The recommended power-up sequence for the ADG1608 is to power up the VDD supply first, followed by the VSS supply. This ensures that the internal circuitry is properly biased and minimizes the risk of latch-up or damage to the device.
  • To troubleshoot issues with the ADG1608, start by verifying the power supply voltages and ensuring that they are within the recommended operating range. Check the input signals and output loads to ensure they are within the specified limits. Use an oscilloscope to monitor the switching behavior and look for any signs of oscillation or ringing. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.
  • The ADG1608 is not specifically designed or tested for radiation hardness, and its performance in a radiation-rich environment is not guaranteed. If radiation hardness is a requirement, it's recommended to consult with Analog Devices' technical support or consider using a radiation-hardened alternative.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG1608BCPZ-REEL7 Overview

Use the download button to access the ADG1608BCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG16, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
