ADG1611BCPZ-REEL - Analog Devices

Description: 1 Ω typical on resistance 0.2 Ω on resistance flatness ±3.3 V to ±8 V dual-supply operation 3.3 V to 16 V single-supply operation No VL supply required 3 V logic-compatible inputs Rail-to-rail operation Continuous current per channel LFCSP package: 280 mA TSSOP package: 175 mA 16-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP

Download ADG1611BCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

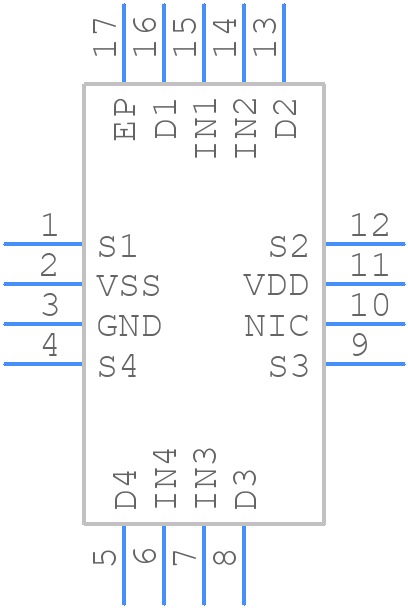

ADG1611BCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1611BCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-26)LFCSP
click to zoom
3D Models
ADG1611BCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-26)LFCSP
click to zoom

ADG1611BCPZ-REEL Details

  • Manufacturer Part Number:

    ADG1611BCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-26

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    1.2 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.336 A

  • Supply Current-Max (Isup):

    0.48 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    159 ns

  • Switch-on Time-Max:

    285 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADG1611BCPZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1611BCPZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • The ADG1611BCPZ-REEL requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the analog power supply is stable.
  • The ADG1611BCPZ-REEL can operate up to 100 kHz. However, the device's performance may degrade at higher frequencies due to increased power consumption and reduced signal-to-noise ratio. It's recommended to operate the device at frequencies below 10 kHz for optimal performance.
  • The ADG1611BCPZ-REEL has built-in ESD protection, but it's still recommended to handle the device with care. Use an anti-static wrist strap or mat, and avoid touching the device's pins or exposed internal components. Store the device in an anti-static bag or tube when not in use.
  • The ADG1611BCPZ-REEL has a maximum junction temperature of 150°C. Ensure reliable operation over temperature by providing adequate heat sinking, using a thermally conductive PCB material, and avoiding high-power dissipation. Operate the device within the recommended temperature range of -40°C to 125°C.
