ADG1612BRUZ - Analog Devices

Description: 1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V Quad SPST Switches

Download ADG1612BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

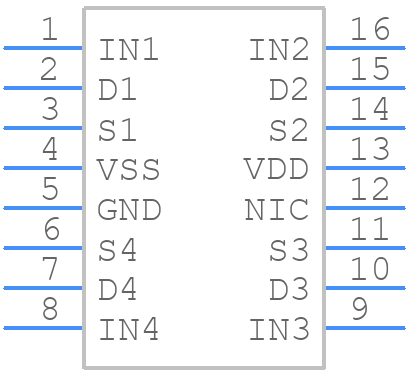

ADG1612BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1612BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - tssop 16-1
click to zoom
3D Models
ADG1612BRUZ - Analog Devices - 3D model - Small Outline Packages - tssop 16-1
click to zoom

ADG1612BRUZ Details

  • Manufacturer Part Number:

    ADG1612BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    1.2 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.206 A

  • Supply Current-Max (Isup):

    0.48 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    159 ns

  • Switch-on Time-Max:

    285 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG1612BRUZ Frequently Asked Questions (FAQs)

  • To minimize EMI and noise, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the signal traces short and away from noise sources, and use shielding if possible.
  • Ensure that the power supply is clean and well-regulated, and use a 0.1uF decoupling capacitor between VDD and GND, as close to the device as possible. Additionally, use a 10uF bulk capacitor between VDD and GND, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
  • The maximum operating frequency of the ADG1612BRUZ is 100 kHz. Operating the device at frequencies above this can lead to increased power consumption, reduced accuracy, and potential oscillations. It is recommended to operate the device at frequencies below 100 kHz to ensure optimal performance.
  • During power-up, the ADG1612BRUZ's output may exhibit a brief period of instability. To handle this, consider adding a power-on reset circuit or a soft-start circuit to ensure a clean power-up sequence. During power-down, the device's output will go high impedance, so ensure that the load is properly terminated to prevent damage.
  • The ADG1612BRUZ is a high-power device and can generate significant heat. To manage thermal issues, ensure good airflow around the device, use a heat sink if possible, and consider using a thermal interface material to improve heat transfer. Additionally, ensure that the device is operated within its recommended temperature range.
