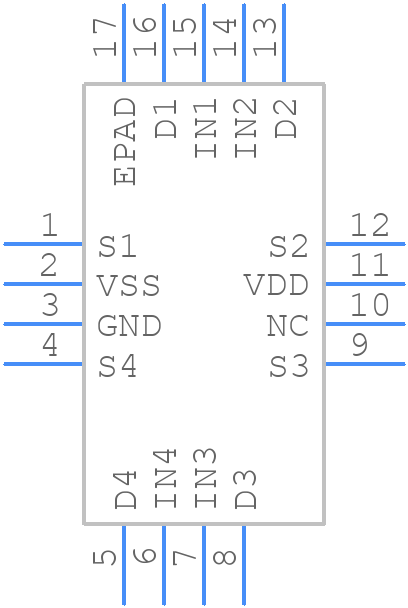

ADG1613BCPZ-REEL - Analog Devices

ADG1613BCPZ-REEL Details

• Manufacturer Part Number:

  ADG1613BCPZ-REEL

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  4 X 4 MM, ROHS COMPLIANT, MO-220VGGC, LFCSP-16

• Pin Count:

  16

• Manufacturer Package Code:

  CP-16-26

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  SPST

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage-Max (Vsup):

  -8 V

• Neg Supply Voltage-Min (Vsup):

  -3.3 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Normal Position:

  NO/NC

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  70 dB

• On-state Resistance Match-Nom:

  0.04 Ω

• On-state Resistance-Max (Ron):

  4 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  UNSPECIFIED

• Package Code:

  QCCN

• Package Equivalence Code:

  LCC16,.16SQ,25

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Signal Current-Max:

  0.336 A

• Supply Current-Max (Isup):

  0.48 mA

• Supply Voltage-Max (Vsup):

  8 V

• Supply Voltage-Min (Vsup):

  3.3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  159 ns

• Switch-on Time-Max:

  493 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
