ADG1613BCPZ-REEL7 - Analog Devices

Description: 1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V Quad SPST Switches

Download ADG1613BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

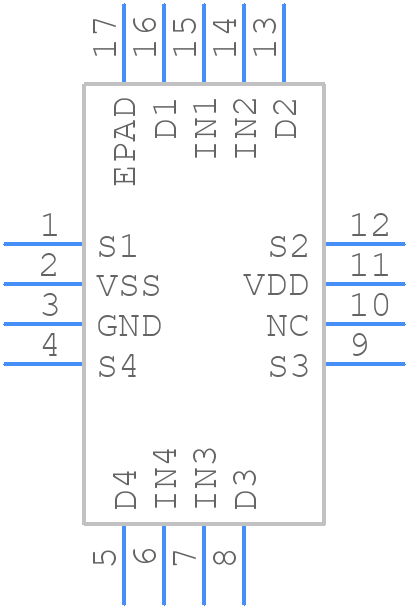

ADG1613BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1613BCPZ-REEL7 - Analog Devices PCB footprint - Other - Other - QFN65P400X400X100-17N
click to zoom
3D Models
ADG1613BCPZ-REEL7 - Analog Devices - 3D model - Other - QFN65P400X400X100-17N
click to zoom

ADG1613BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1613BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-26

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    4 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.336 A

  • Supply Current-Max (Isup):

    0.48 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    159 ns

  • Switch-on Time-Max:

    493 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADG1613BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1613BCPZ-REEL7 should include a solid ground plane, separate analog and digital power planes, and minimize trace lengths and loops to reduce noise and EMI. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference.
  • The ADG1613BCPZ-REEL7 requires a single 3.3V or 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized to prevent latch-up or other issues.
  • The ADG1613BCPZ-REEL7 can operate up to 100 MHz, but the maximum operating frequency depends on the specific application and signal conditions. Higher frequencies can lead to increased power consumption, reduced signal-to-noise ratio, and decreased device performance.
  • The ADG1613BCPZ-REEL7 has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance and reliability. Thermal management techniques such as heat sinks, thermal vias, and airflow can help reduce the device temperature.
  • The ADG1613BCPZ-REEL7 has built-in ESD protection diodes, but it's still recommended to use external ESD protection devices and follow proper handling and storage procedures to prevent damage. Latch-up prevention can be achieved by using a power-on reset circuit and ensuring that the device is powered up and down slowly.
