ADG2188BCPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG2188BCPZ-REEL7 - CROSSPOINT SW, ANALOGUE, 8X8, LFCSP-32

Download ADG2188BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

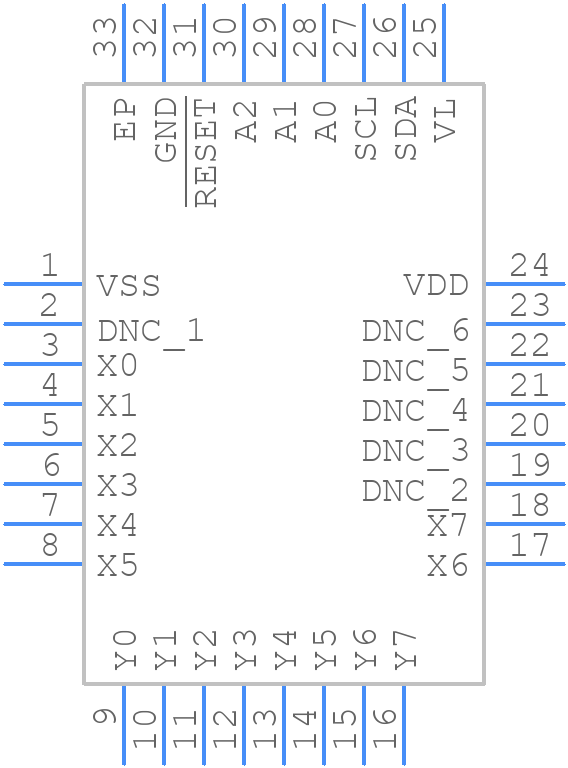

ADG2188BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG2188BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-7 (LFCSP)
click to zoom
3D Models
ADG2188BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-7 (LFCSP)
click to zoom

ADG2188BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG2188BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CAN ALSO OPERATES AT +/-12 V SUPPLY

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Off-state Isolation-Nom:

    66 dB

  • On-state Resistance Match-Nom:

    4.5 Ω

  • On-state Resistance-Max (Ron):

    50 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.09 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    250 ns

  • Switch-on Time-Max:

    185 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADG2188BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG2188BCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • To minimize EMI and RFI, it's recommended to use a shielded enclosure, keep the analog and digital circuits separate, and use EMI filters or ferrite beads on the input and output lines. Additionally, it's essential to follow good PCB layout practices, such as keeping the signal traces short and using a solid ground plane.
  • Common issues with the ADG2188BCPZ-REEL7 include incorrect pin connections, power supply issues, and signal integrity problems. To troubleshoot these issues, it's recommended to use a logic analyzer or oscilloscope to verify the signal integrity, check the power supply voltage and current, and verify the pin connections against the datasheet.
  • In high-reliability or safety-critical applications, it's essential to follow a rigorous design and testing process, including fault tree analysis, failure modes and effects analysis (FMEA), and environmental testing. Additionally, it's recommended to use redundant or duplicate systems, implement error detection and correction mechanisms, and follow industry-specific standards and regulations.
