ADG3123BRUZ - Analog Devices

Description: ADG3123BRUZ, Voltage Level Translator, -24.2 to 0, 10.8 to 35V 20-Pin TSSOP

Download ADG3123BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

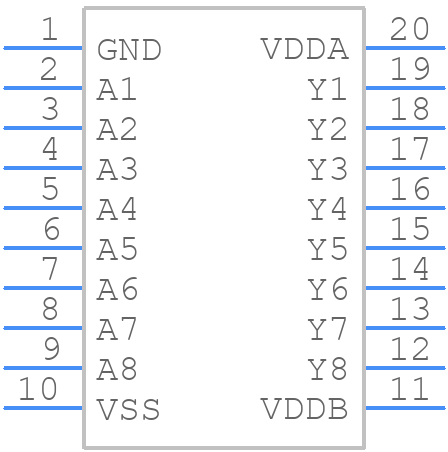

ADG3123BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3123BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADG3123BRUZ
click to zoom
3D Models
ADG3123BRUZ - Analog Devices - 3D model - Small Outline Packages - ADG3123BRUZ
click to zoom

ADG3123BRUZ Details

  • Manufacturer Part Number:

    ADG3123BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Delay-Max:

    125 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    2.7 V

  • Supply Voltage1-Max:

    35 V

  • Supply Voltage1-Min:

    10.8 V

  • Supply Voltage1-Nom:

    27 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG3123BRUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3123BRUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADG3123BRUZ requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirement is to power up the VDD pin before the VLOGIC pin, and to power down the VLOGIC pin before the VDD pin.
  • The ADG3123BRUZ can achieve a maximum data transfer rate of up to 100 Mbps, depending on the system design and the quality of the signal transmission lines.
  • To troubleshoot issues with the ADG3123BRUZ, start by verifying the power supply and clock signals. Then, use a logic analyzer or oscilloscope to monitor the digital signals and verify that they are correct. Check the device's configuration and programming, and ensure that the system design meets the device's specifications.
  • The ADG3123BRUZ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, ensure that the device is operated within its recommended operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG3123BRUZ Overview

Use the download button to access the ADG3123BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG31, or try a keyword search, such as Level Translators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
