ADG3231BRJZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG3231BRJZ-REEL7 - Level Translator, 1 Input, 1.65 V to 3.6 V Supply, 25 mA Out, 6.5 ns Delay, SOT-23-6

Download ADG3231BRJZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

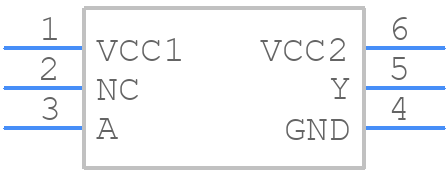

Symbol
ADG3231BRJZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3231BRJZ-REEL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - RJ-6
click to zoom
3D Models
ADG3231BRJZ-REEL7 - Analog Devices - 3D model - SOT23 (6-Pin) - RJ-6
click to zoom

ADG3231BRJZ-REEL7 Details

  • Manufacturer Part Number:

    ADG3231BRJZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Delay-Max:

    10.25 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    1.6 mm

ADG3231BRJZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3231BRJZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a shielded enclosure and minimizing the length of the analog signal traces can help reduce EMI and noise.
  • To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 0.1 μF) between the VDD and GND pins, and a larger capacitor (e.g., 10 μF) between the VDD and GND pins for bulk decoupling. Also, use a low-dropout regulator (LDO) or a switching regulator with a low noise output to power the device.
  • The ADG3231BRJZ-REEL7 can operate up to 100 MHz, but the actual operating frequency depends on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for more information on frequency planning and layout considerations.
  • The ADG3231BRJZ-REEL7 has a maximum junction temperature of 150°C. To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • For testing and measurement, use a high-impedance probe or a low-capacitance probe to minimize loading effects. Use a signal generator with a low output impedance to drive the device, and a high-bandwidth oscilloscope to measure the output. Also, ensure the test setup is properly calibrated and the device is properly terminated.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG3231BRJZ-REEL7 Overview

Use the download button to access the ADG3231BRJZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG32, or try a keyword search, such as Level Translators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
