ADG3233BRJZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG3233BRJZ-REEL7 - LEVEL TRANSLATOR, 2I/P, SOT-23-8

Download ADG3233BRJZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

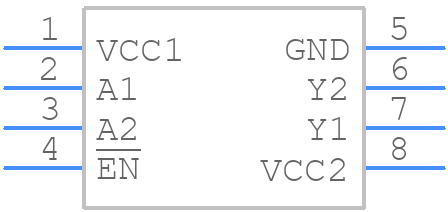

ADG3233BRJZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3233BRJZ-REEL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - RJ-8 (SOT23)_1
click to zoom
3D Models
ADG3233BRJZ-REEL7 - Analog Devices - 3D model - SOT23 (8-Pin) - RJ-8 (SOT23)_1
click to zoom

ADG3233BRJZ-REEL7 Details

  • Manufacturer Part Number:

    ADG3233BRJZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Delay-Max:

    10.5 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

ADG3233BRJZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3233BRJZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI and noise.
  • To ensure proper powering and decoupling of the ADG3233BRJZ-REEL7, use a high-quality, low-ESR capacitor (e.g., 10uF) between the VCC and GND pins, and a smaller capacitor (e.g., 100nF) between the VCC and GND pins for high-frequency decoupling. Also, ensure that the power supply is clean and well-regulated.
  • The ADG3233BRJZ-REEL7 is rated for operation from -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain reliable operation.
  • The ADG3233BRJZ-REEL7's POR and BOR features can be handled by ensuring that the power supply is stable and well-regulated, and by using an external reset circuit or a microcontroller to monitor the power supply and reset the device as needed.
  • The recommended termination resistors for the ADG3233BRJZ-REEL7's digital outputs depend on the specific application and the load impedance. A general guideline is to use a series resistor (e.g., 22Ω to 47Ω) to match the output impedance of the device to the load impedance.
