ADG3241BKSZ-500RL7 - Analog Devices

Description: Analog Devices ADG3241BKSZ-500RL7, Logic Level Translator, Translator, Differential, 6-Pin SC-70

Download ADG3241BKSZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

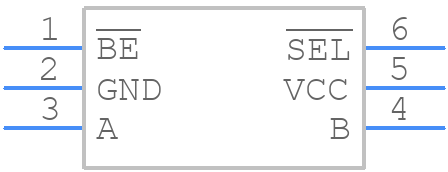

ADG3241BKSZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3241BKSZ-500RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - KS-6 (SC70)_2
click to zoom
3D Models
ADG3241BKSZ-500RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - KS-6 (SC70)_2
click to zoom

ADG3241BKSZ-500RL7 Details

  • Manufacturer Part Number:

    ADG3241BKSZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    3241

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.225 ns

  • Propagation Delay (tpd):

    0.225 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.25 mm

ADG3241BKSZ-500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3241BKSZ-500RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • To minimize EMI and RFI, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, it's essential to follow proper PCB layout practices, such as keeping the analog and digital circuits separate and using a solid ground plane.
  • To troubleshoot issues with the ADG3241BKSZ-500RL7, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output voltages, and verify that the device is properly configured. Use an oscilloscope to check for any unusual waveforms or noise on the input and output lines. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • When using the ADG3241BKSZ-500RL7 in a high-reliability or safety-critical application, it's essential to follow proper design and verification procedures, such as performing thorough testing and validation, using redundant systems or components, and implementing fail-safe mechanisms. Additionally, it's recommended to consult with Analog Devices' application engineers and to follow industry-specific standards and guidelines.
