ADG3246BCPZ - Analog Devices

Description: Translation - Voltage Levels 2.5V/3.3v,Dual 8/16-bit, 2 Port Bus SW/T

Download ADG3246BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

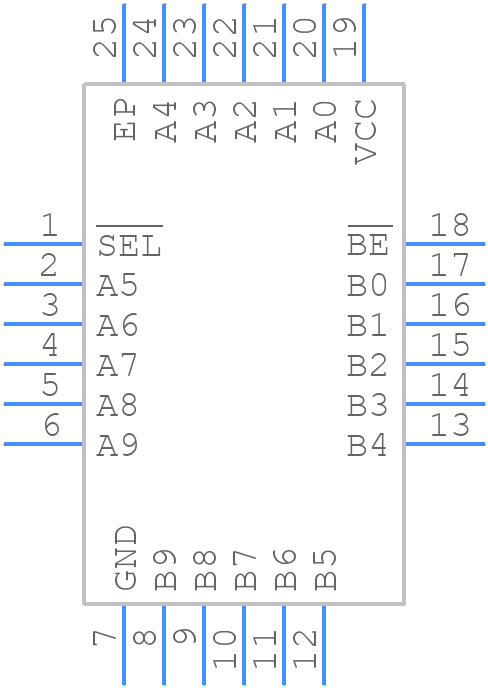

ADG3246BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3246BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10)LFCSP
click to zoom
3D Models
ADG3246BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10)LFCSP
click to zoom

ADG3246BCPZ Details

  • Manufacturer Part Number:

    ADG3246BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    CSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 3.3V

  • Control Type:

    ENABLE LOW

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    3246

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    0.225 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADG3246BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3246BCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI and noise.
  • To ensure proper powering and decoupling of the ADG3246BCPZ, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VCC and GND pins, and a 100nF capacitor between the VCC and AVCC pins. Also, use a separate power supply for the analog and digital sections, and ensure the power supply is well-regulated and low-noise.
  • The ADG3246BCPZ can achieve data transfer rates of up to 100 Mbps, depending on the specific application and system design. However, the actual data transfer rate may be limited by the system's clock speed, bus loading, and other factors.
  • The ADG3246BCPZ's POR and BOR functions can be handled by connecting the POR pin to a capacitor and a resistor to create a power-on reset circuit. The BOR function can be enabled or disabled by connecting the BOR pin to VCC or GND, respectively. It's also important to ensure that the system's power supply is stable and well-regulated to prevent false resets.
  • The ADG3246BCPZ has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or thermal pad, and ensure good airflow around the device. Also, avoid overheating the device during soldering or rework, and use a thermally conductive adhesive or thermal interface material to improve heat transfer.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG3246BCPZ Overview

Use the download button to access the ADG3246BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG32, or try a keyword search, such as Bus Driver/Transceivers
