ADG3247BRUZ - Analog Devices

Description: ADG3247BRUZ, Bus Switch 8 x 1:1, 2.3 to 3.6V 38-Pin TSSOP

Download ADG3247BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

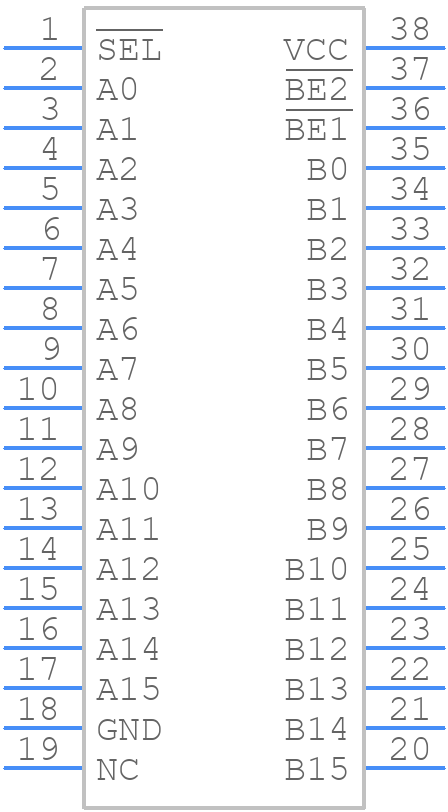

ADG3247BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3247BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-38 (TSSOP)
click to zoom
3D Models
ADG3247BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-38 (TSSOP)
click to zoom

ADG3247BRUZ Details

  • Manufacturer Part Number:

    ADG3247BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    RU-38

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    3247

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.225 ns

  • Propagation Delay (tpd):

    0.225 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG3247BRUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3247BRUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a shielded enclosure and minimizing the length of the analog signal traces can help reduce EMI and noise.
  • To ensure proper powering and decoupling of the ADG3247BRUZ, use a high-quality power supply with low ripple and noise, and decouple the device with a 10uF capacitor in parallel with a 100nF capacitor between the VCC and GND pins. Additionally, use a 1uF capacitor between the VCC and AVCC pins.
  • The ADG3247BRUZ can achieve a maximum data transfer rate of up to 100 Mbps, depending on the specific application and system design.
  • The ADG3247BRUZ can be configured for different voltage levels and interfaces by adjusting the voltage supply, using external resistors to set the voltage levels, and configuring the device's internal registers. Refer to the datasheet and application notes for specific configuration details.
  • The ADG3247BRUZ has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or thermal pad, and ensure good airflow around the device. Additionally, minimize the power consumption and reduce the thermal resistance of the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG3247BRUZ Overview

Use the download button to access the ADG3247BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG32, or try a keyword search, such as Bus Driver/Transceivers
