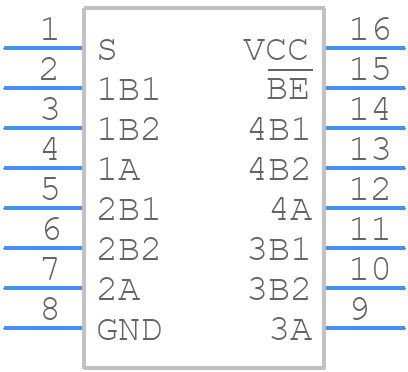

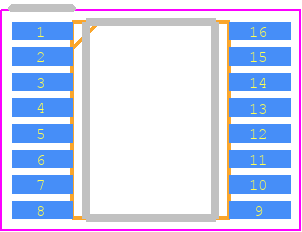

ADG3257BRQ-REEL - Analog Devices

ADG3257BRQ-REEL Details

• Manufacturer Part Number:

  ADG3257BRQ-REEL

• Source Url Status Check Date:

  2013-05-01 14:56:37.008

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  QSOP-16

• Pin Count:

  16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  ALSO OPEARATES AT 5V VCC NOMINAL

• Control Type:

  ENABLE LOW

• Count Direction:

  BIDIRECTIONAL

• Family:

  3257

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e0

• Length:

  4.9022 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS EXCHANGER

• Number of Bits:

  2

• Number of Functions:

  4

• Number of Ports:

  3

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Packing Method:

  TR

• Prop. Delay@Nom-Sup:

  0.1 ns

• Propagation Delay (tpd):

  0.1 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.7526 mm

• Supply Voltage-Max (Vsup):

  3.63 V

• Supply Voltage-Min (Vsup):

  2.97 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Width:

  3.9116 mm
