ADG3300BRUZ - Analog Devices

Description: ADG3300BRUZ, Logic Level Translator, 3-State 1.15 to 5.5V 20-Pin TSSOP

Download ADG3300BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

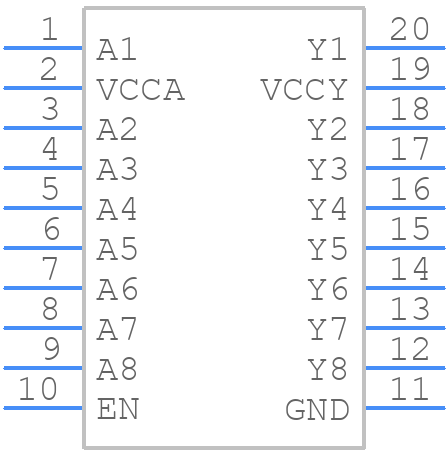

ADG3300BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3300BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
ADG3300BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

ADG3300BRUZ Details

  • Manufacturer Part Number:

    ADG3300BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Delay-Max:

    35 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG3300BRUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3300BRUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADG3300BRUZ requires a single 3.3V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirement is to power up the VDD pin before the VLOGIC pin. The VDD pin should be powered up first, followed by the VLOGIC pin.
  • The ADG3300BRUZ can achieve a maximum data transfer rate of up to 100 Mbps. However, the actual data transfer rate may vary depending on the system design, PCB layout, and signal integrity.
  • The ADG3300BRUZ can be configured for different interface modes by setting the MODE pins (MODE0 and MODE1) to the desired configuration. For example, setting MODE0 = 0 and MODE1 = 0 configures the device for SPI mode, while setting MODE0 = 1 and MODE1 = 0 configures the device for I2C mode.
  • The ADG3300BRUZ has a maximum junction temperature of 150°C. To ensure the device operates within the recommended temperature range, it's recommended to use a heat sink or a thermal pad, and to ensure good airflow around the device. Additionally, the device should be placed in a location that minimizes thermal coupling to other components.
