ADG3304BRUZ-REEL - Analog Devices

Description: Low Voltage 1.15 V to 5.5 V, 4 Channel, Bidirectional, Logic Level Translator

Download ADG3304BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

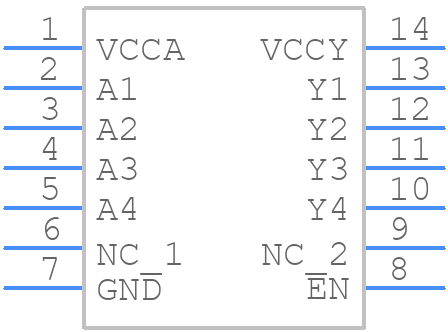

ADG3304BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3304BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Thin Shrink Small Outline Package [TSSOP]*
click to zoom
3D Models
ADG3304BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - 14-Lead Thin Shrink Small Outline Package [TSSOP]*
click to zoom

ADG3304BRUZ-REEL Details

  • Manufacturer Part Number:

    ADG3304BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Delay-Max:

    35 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG3304BRUZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3304BRUZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADG3304BRUZ-REEL requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the VDD pin before the VLOGIC pin. The device is enabled when both VDD and VLOGIC are powered up.
  • The ADG3304BRUZ-REEL can achieve a maximum data transfer rate of up to 100 Mbps. However, the actual data transfer rate may vary depending on the system design, PCB layout, and signal integrity.
  • The ADG3304BRUZ-REEL has a maximum junction temperature of 150°C. To handle thermal management, it's recommended to use a heat sink, ensure good airflow, and avoid blocking the airflow around the device. In high-temperature environments, consider using a thermal interface material to improve heat transfer.
  • The ADG3304BRUZ-REEL has built-in ESD protection diodes on all pins. To prevent latch-up, it's recommended to use a series resistor on the input pins, and to ensure that the input signals are not over-driven. Additionally, consider using a TVS diode or a transient voltage suppressor to protect the device from voltage transients.
