Part Image

ADG3304BRUZ - Analog Devices

Description: Bidirectional level translation Operates from 1.15 V to 5.5 V Low quiescent current < 5 µA No direction pin Qualified for automotive applications APPLICATIONS SPI, MICROWIRE level translation Low voltage ASIC level translation Smart card readers Cell phones and cell phone cradles Portable communications devices Telecommunications equipment Network switches and routers Storage systems (SAN/NAS) Computing/server applications GPS Portable POS systems Low cost serial interfaces

Download ADG3304BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

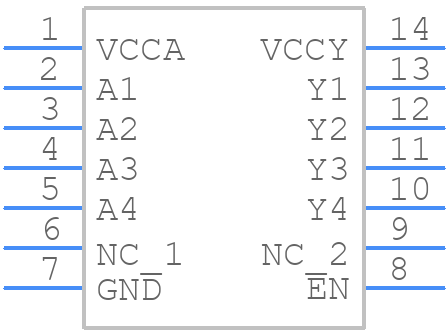

ADG3304BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3304BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Thin Shrink Small Outline Package [TSSOP] (RU-14)
click to zoom
3D Models
ADG3304BRUZ - Analog Devices - 3D model - Small Outline Packages - 14-Lead Thin Shrink Small Outline Package [TSSOP] (RU-14)
click to zoom

ADG3304BRUZ Details

  • Manufacturer Part Number:

    ADG3304BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Delay-Max:

    35 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG3304BRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The ADG3304BRUZ requires a single 3.3V power supply. Ensure that the power supply is clean and regulated. Power sequencing is not critical, but it's recommended to power up the digital supply (VCC) before the analog supply (AVCC) to prevent any potential latch-up.
  • The ADG3304BRUZ can handle clock frequencies up to 100 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • The ADG3304BRUZ can be interfaced with a microcontroller or FPGA using standard digital interfaces such as SPI, I2C, or parallel interfaces. Ensure that the interface signals are properly level-shifted and buffered to match the voltage levels of the ADG3304BRUZ.
  • The ADG3304BRUZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures or high power levels.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG3304BRUZ Overview

Use the download button to access the ADG3304BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG33, or try a keyword search, such as Level Translators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
