ADG3304SRU-EP-RL7 - Analog Devices

Description: 4-Channel,Bidirectional Logic Level Translator

Download ADG3304SRU-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

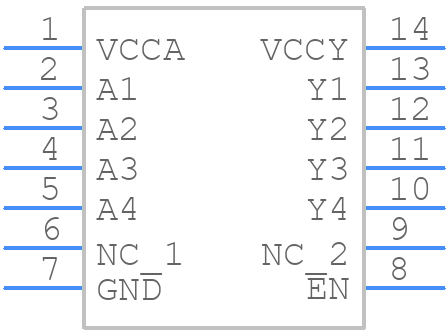

Symbol
ADG3304SRU-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3304SRU-EP-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
ADG3304SRU-EP-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

ADG3304SRU-EP-RL7 Details

  • Manufacturer Part Number:

    ADG3304SRU-EP-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:37.059

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Delay-Max:

    40 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG3304SRU-EP-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3304SRU-EP-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADG3304SRU-EP-RL7 requires a single 3.3V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The ADG3304SRU-EP-RL7 can handle clock frequencies up to 100 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The ADG3304SRU-EP-RL7 is a highly configurable device that can be programmed to support various data rates and protocols. The device can be configured using the SPI interface, and the configuration data is stored in the device's internal registers.
  • The ADG3304SRU-EP-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. A thermal pad is provided on the package to facilitate heat dissipation.
