ADG3304SRUZ-EP-RL7 - Analog Devices

Description: Low Voltage 1.15 V to 5.5 V, 4 Channel, Bidirectional, Logic Level Translator

Download ADG3304SRUZ-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

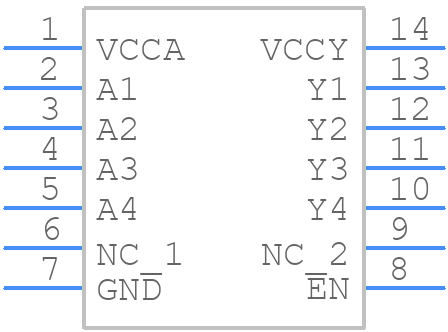

ADG3304SRUZ-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3304SRUZ-EP-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Thin Shrink Small Outline Package [TSSOP]_014
click to zoom
3D Models
ADG3304SRUZ-EP-RL7 - Analog Devices - 3D model - Small Outline Packages - 14-Lead Thin Shrink Small Outline Package [TSSOP]_014
click to zoom

ADG3304SRUZ-EP-RL7 Details

  • Manufacturer Part Number:

    ADG3304SRUZ-EP-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-02-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Delay-Max:

    40 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG3304SRUZ-EP-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3304SRUZ-EP-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and load. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliability in high-temperature applications, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range.
  • The ADG3304SRUZ-EP-RL7 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using an ESD wrist strap or mat.
  • The ADG3304SRUZ-EP-RL7 is a radiation-tolerant device, but it is not radiation-hardened. It is designed to meet the requirements of the aerospace industry, but it may not meet the requirements of all radiation-hardened applications. Consult with Analog Devices Inc for specific radiation testing and characterization data.
  • The recommended power-up sequence for the ADG3304SRUZ-EP-RL7 is to power up the VDD pin first, followed by the VCC pin. This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.
