ADG3308BCBZ-1-RL7 - Analog Devices

Description: Translation - Voltage Levels 1.2 V - 5.5 V, 8-channel BI-DIR TRANS IC

Download ADG3308BCBZ-1-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

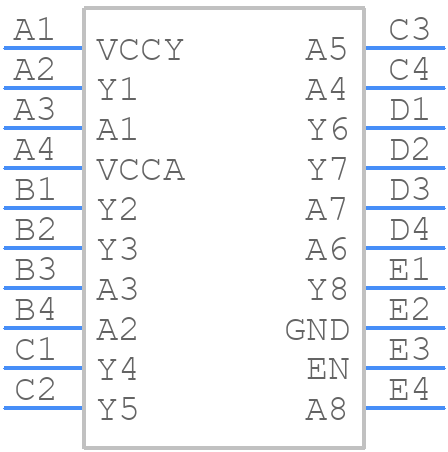

Symbol
ADG3308BCBZ-1-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3308BCBZ-1-RL7 - Analog Devices PCB footprint - BGA - BGA - (CB-20-2)_
click to zoom
3D Models
ADG3308BCBZ-1-RL7 - Analog Devices - 3D model - BGA - (CB-20-2)_
click to zoom

ADG3308BCBZ-1-RL7 Details

  • Manufacturer Part Number:

    ADG3308BCBZ-1-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CB-20-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Delay-Max:

    10 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-XBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2 mm

ADG3308BCBZ-1-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3308BCBZ-1-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, it's recommended to derate the device's power consumption and operating frequency to prevent overheating.
  • To minimize EMI and RFI, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters on the input and output lines. Additionally, it's essential to follow proper PCB layout practices, such as using a solid ground plane and minimizing the length of the signal traces.
  • To troubleshoot issues with the ADG3308BCBZ-1-RL7, start by checking the power supply voltage, clock frequency, and input signal integrity. Use an oscilloscope to verify the signal waveforms and check for any signs of noise or distortion. Also, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • When using the ADG3308BCBZ-1-RL7 in a radiation-hardened application, it's essential to consider the total ionizing dose (TID) and single-event effects (SEE) tolerance. The device's radiation hardness is specified in the datasheet, and it's recommended to follow proper radiation-hardening design practices, such as using radiation-hardened components and designing for fault tolerance.
