ADG3308BCPZ-REEL - Analog Devices

Description: Translation - Voltage Levels 1.2 V - 5.5 V, 8-channel BI-DIR TRANS IC

Download ADG3308BCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

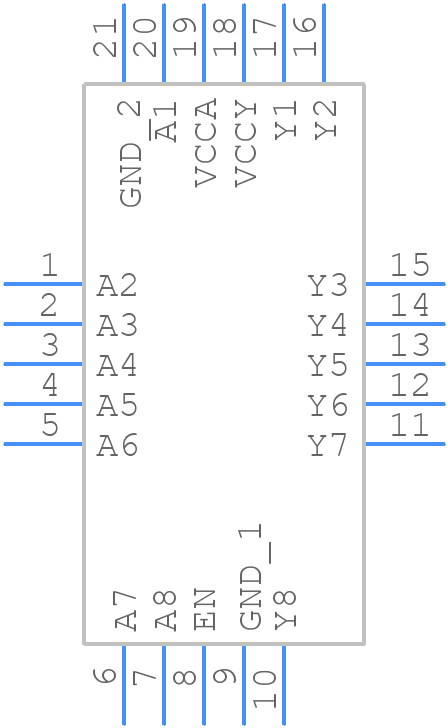

ADG3308BCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG3308BCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom
3D Models
ADG3308BCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom

ADG3308BCPZ-REEL Details

  • Manufacturer Part Number:

    ADG3308BCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Delay-Max:

    10 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADG3308BCPZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG3308BCPZ-REEL should include a solid ground plane, separate analog and digital power domains, and careful routing of sensitive analog signals. Additionally, it's recommended to place the device close to the analog signal sources and use short, direct traces to minimize noise pickup.
  • The ADG3308BCPZ-REEL requires a single 3.3V or 5V power supply. It's recommended to power the device from a low-noise, well-regulated power source. Power sequencing is not critical, but it's recommended to power the device after the analog power supplies are stable.
  • The ADG3308BCPZ-REEL is specified to operate from -40°C to 125°C. Temperature affects the device's performance, with increased temperature resulting in increased power consumption and decreased accuracy. It's recommended to operate the device within the specified temperature range for optimal performance.
  • To troubleshoot issues with the ADG3308BCPZ-REEL, first verify the power supply and clock signals are correct. Check the device's output voltages and currents using an oscilloscope or multimeter. If issues persist, check the PCB layout and routing for noise and signal integrity issues. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • The ADG3308BCPZ-REEL is a commercial-grade device, but it can be used in high-reliability applications with proper design and testing. It's recommended to consult with Analog Devices Inc. for specific guidance on using the device in safety-critical applications. The device is RoHS and REACH compliant, and it meets relevant industry standards for electromagnetic compatibility (EMC) and electromagnetic interference (EMI).
